South

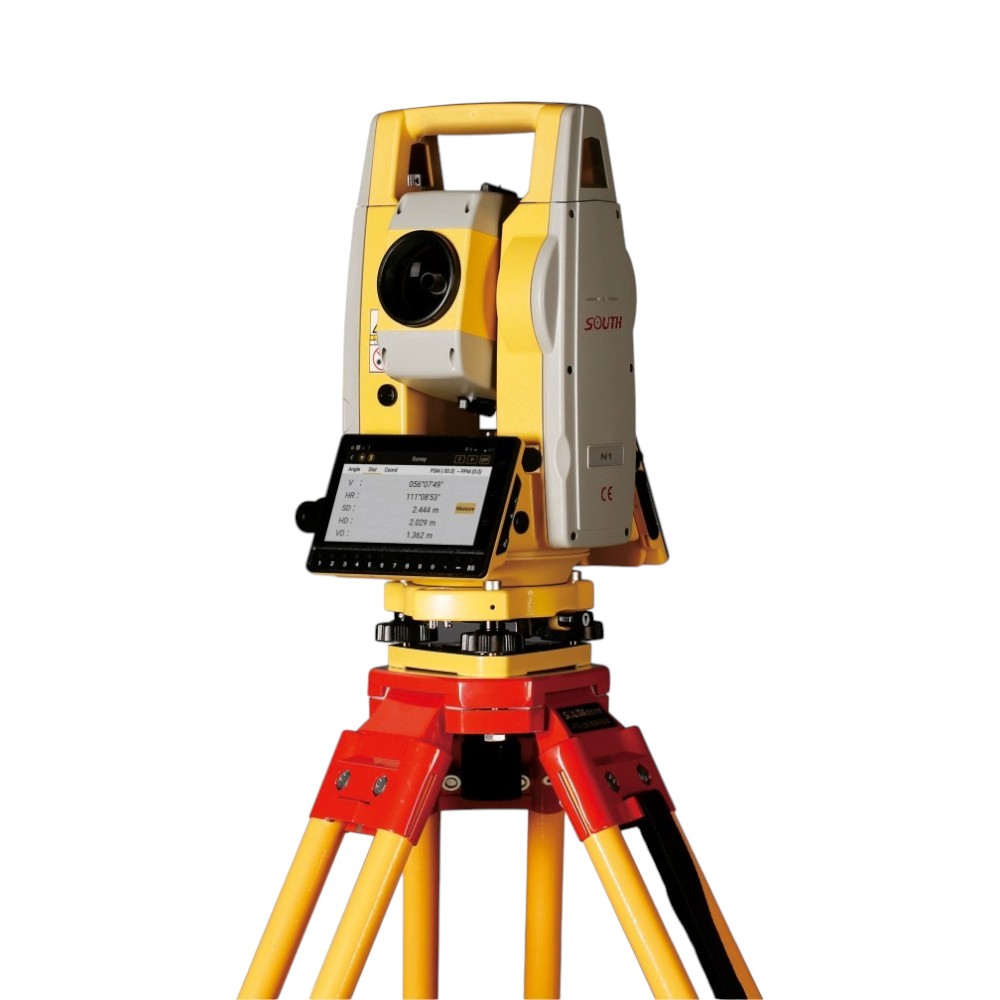

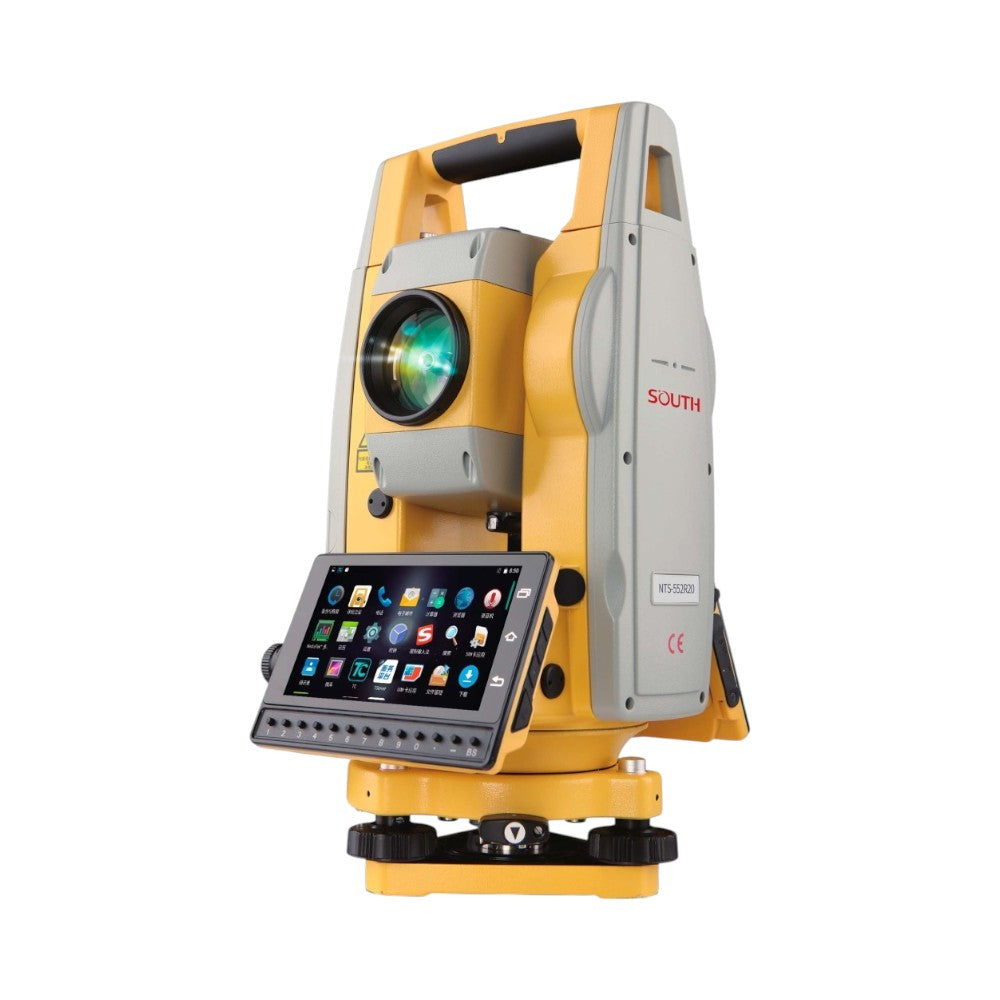

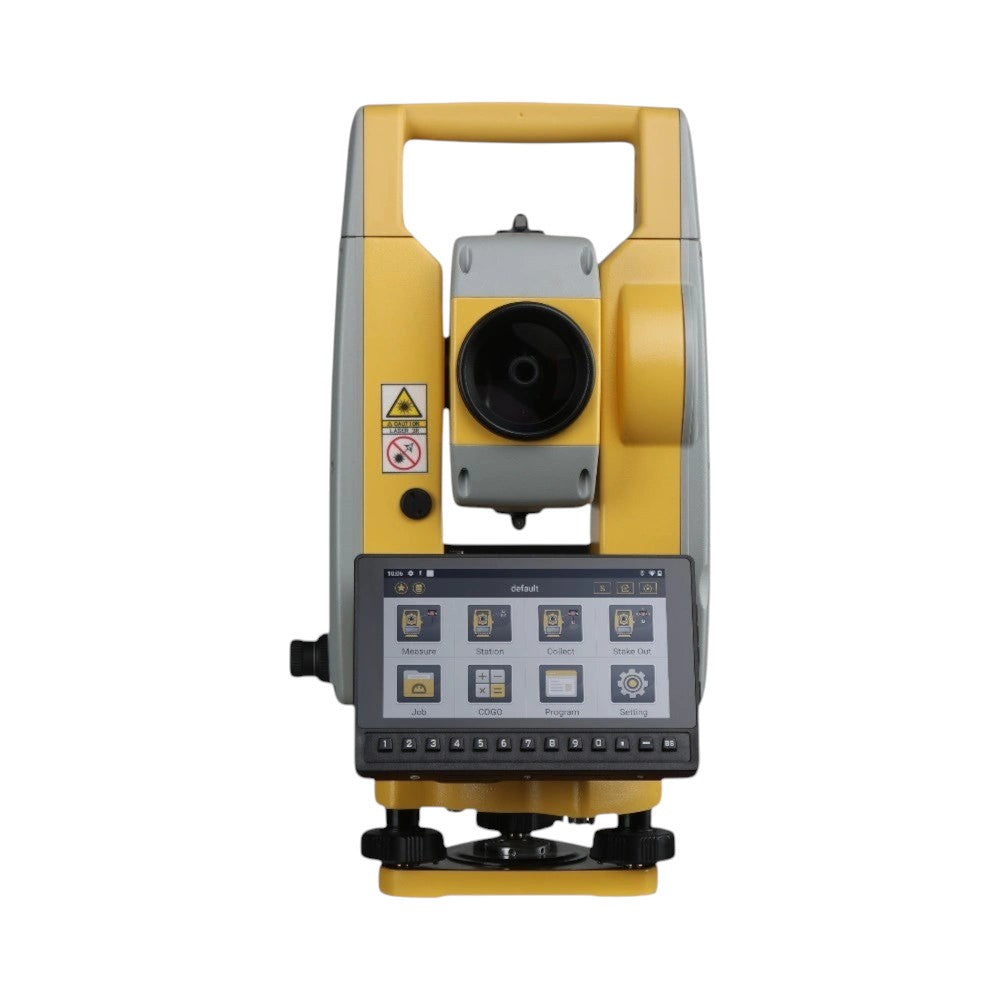

South N1 Total Station

$5,953.28
4.88

Contact us for the best deal on this product.


The South N1 Android total station is capable of delivering 2" accuracy and also has a 5,000m EDM range. You can operate it with ease thanks to a 5.5-inch touchscreen operated by the latest Android 11.0 system. It offers unparalleled precision and efficiency for modern surveying tasks and is one of the best tools in its range.

Secure Payments
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
Shop Pay
Visa
  • Quick worldwide shipping with trusted carriers
  • Multiple safe payment options for peace of mind
  • Professional advice to choose the right equipment
  • 24/7 premium customer assistance

Product Information

South N1 Android Total Station: Smart Surveying Technology

The South N1 combines Android intelligence with precision surveying technology to deliver professional-grade measurements through an intuitive touchscreen interface. Designed for modern surveyors who demand accuracy without complexity.


Android-Powered Intelligence

Experience surveying redefined with Android 11.0 operating system and Survey Star software. The 5.5-inch touchscreen provides smartphone-familiar navigation while delivering professional measurement capabilities with 2" angular accuracy and 5,000m EDM range.

Dual-Mode Measurement Flexibility

Switch seamlessly between prism and reflectorless modes to handle any surveying scenario. The dual-laser EDM technology ensures reliable measurements up to 2,000m without prisms, expanding your operational capabilities in challenging environments.

Key Advantages

  • Intuitive Android interface reduces learning curve and training time
  • IP55 weatherproof rating ensures reliable operation in harsh conditions
  • Comprehensive data connectivity including USB, WiFi, and Bluetooth
  • CAD stakeout functionality streamlines construction layout workflows

Professional-Grade Durability

Built to withstand demanding field conditions while maintaining measurement precision. The robust construction and weather-resistant design ensure consistent performance across diverse surveying applications, from topographic mapping to construction stakeout.

Specs

Telescope:

Magnification: 30×

Field of View: 1°30′

Minimum Focus Distance: 1.2 m

Angle Measurement:

Accuracy: 2″

Method: Absolute encoding

Compensator: Liquid dual-axis

Setting Accuracy: 1″

Compensator Range: ±4′

Distance Measurement (EDM):

Reflectorless Range: 1000 m / 1500 m / 2000 m (optional)

With Prism: Up to 5000 m

Accuracy (Reflectorless): ±(3 mm + 2 ppm)

Accuracy (Prism): ±(2 mm + 2 ppm)

Measuring Time: 0.3 s (fine), 0.1 s (tracking)

Laser Plummet:

Type: Red laser, 4 brightness levels

Accuracy: ±1.5 mm @ 1.5 m

Laser Class: Class 2, <0.4 mW

Wavelength: 630–670 nm

Display:

Size: 5.5″ TFT LCD

Resolution: 720×1280

Touchscreen: Yes

Data & Interface:

Operating System: Android 11.0

Processor: MT6762

Memory: RAM 4 GB, ROM 64 GB

Communication: USB Type-C, Bluetooth 4.0, WiFi 802.11a/b/g/n, 4G LTE, Micro SIM

Ports: TF card, USB OTG

Audio: Built-in mic & speaker

Battery & Power:

Battery: 7.4V rechargeable Li-ion

Operating Time: Up to 8 hours

Environmental:

Operating Temperature: –20°C to +50°C

Protection: IP55

Weight: 5.7 kg

Dimensions: 350 mm × 170 mm × 217 mm

Features :

2" Angle Accuracy
Precise measurements for professional surveying applications.
5,000m EDM Range
Extended measurement distance with prism for large projects.
Android 11.0 System
Modern operating system for seamless app integration.
5.5" Touchscreen Display
Large, intuitive interface for easy field operation.
2,000m Reflectorless
No prism required for versatile measurement options.
±(2+2ppm) mm Precision
High accuracy distance measurement with prism.
Dual-Axis Compensation
Automatic tilt correction for consistent measurements.
IP65 Weather Protection
Dust and water resistant for harsh field conditions.
Download Center
Reviews :
4.9/5
★★★★★
Based on verified reviews
★★★★★
Marcus Thompson
Licensed Land Surveyor · Verified Purchase
Exceptional Performance in Complex Urban Environment
The South N1 has transformed our workflow efficiency with its Android 11.0 interface providing seamless data management and field calculations. The 2" accuracy consistently delivers reliable measurements even in challenging conditions with heavy vehicle traffic. The 5,000m EDM range has eliminated the need for multiple setups on our large-scale topographic projects.
★★★★★
Sarah Chen
Civil Engineering Project Manager · Verified Purchase
Industry-Leading Touchscreen Technology
The 5.5-inch touchscreen interface is remarkably intuitive and responsive, even when wearing work gloves in winter conditions. Data transfer capabilities through Android connectivity have streamlined our office integration process significantly. This instrument has exceeded expectations for precision engineering applications requiring sub-millimeter accuracy.
★★★★★
Robert Castellanos
Senior Survey Technician · Verified Purchase
Outstanding Value for Professional Applications
After six months of intensive field use on infrastructure projects, the N1 continues to deliver consistent 2" angular accuracy without calibration drift. The Android operating system allows for custom app integration that has enhanced our specific workflow requirements. Build quality and weather resistance have proven excellent in harsh coastal environments.
★★★★☆
Jennifer Walsh
Construction Survey Supervisor · Verified Purchase
Reliable Performance with Minor Learning Curve
The South N1 delivers exceptional measurement precision and the extended EDM range has improved productivity on large construction sites. Initial setup required some familiarization with the Android interface, but once mastered, operations are highly efficient. The instrument's robust construction and consistent accuracy make it a valuable addition to our equipment fleet.
★★★★★
David Kumar
Geomatics Engineering Consultant · Verified Purchase
Superior EDM Performance in Diverse Conditions
The 5,000m maximum range capability has proven invaluable for boundary surveys across varied terrain and atmospheric conditions. Android 11.0 integration enables real-time data processing and cloud synchronization that enhances field-to-office workflow. The combination of precision, range, and modern technology makes this total station an excellent investment for professional surveying operations.

What's in the Box

Everything you need to get started.

  • South N1 Android Total Station
  • 7.4V Rechargeable Li-ion Battery
  • Battery Charger + Adapter
  • USB Type-C Cable
  • User Manual
  • Carrying Case
  • Calibration Certificate

Note: Optional accessories sold separately.

Frequently Asked Questions

General
What is the angular accuracy of the South N1 Total Station?
The South N1 Total Station delivers exceptional 2" angular accuracy, making it suitable for high-precision surveying applications including construction layout, topographic surveys, and monitoring tasks where precise measurements are critical.
What is the maximum measurement range of the EDM system?
The N1 features an impressive 5,000-meter EDM range capability, providing extensive measurement coverage for large-scale surveying projects, boundary surveys, and long-distance monitoring applications without the need for intermediate setups.
Can I run third-party surveying applications on the Android system?
Yes, the N1 runs on Android 11.0, providing compatibility with a wide range of professional surveying applications and CAD software. The open Android platform allows for installation of third-party apps, enhancing workflow flexibility and integration with existing project management systems.
How user-friendly is the touchscreen interface for field operations?
The 5.5-inch touchscreen provides intuitive operation with responsive touch controls optimized for field conditions. The large display ensures clear visibility of measurement data, coordinates, and project information even in bright sunlight, while the Android interface offers familiar navigation for enhanced productivity.
What types of surveying applications is the N1 best suited for?
The South N1 excels in construction surveying, topographic mapping, cadastral surveys, infrastructure monitoring, and engineering layout work. Its 2" accuracy and 5,000m range make it ideal for medium to large-scale projects requiring high precision and extensive coverage capabilities.
