South

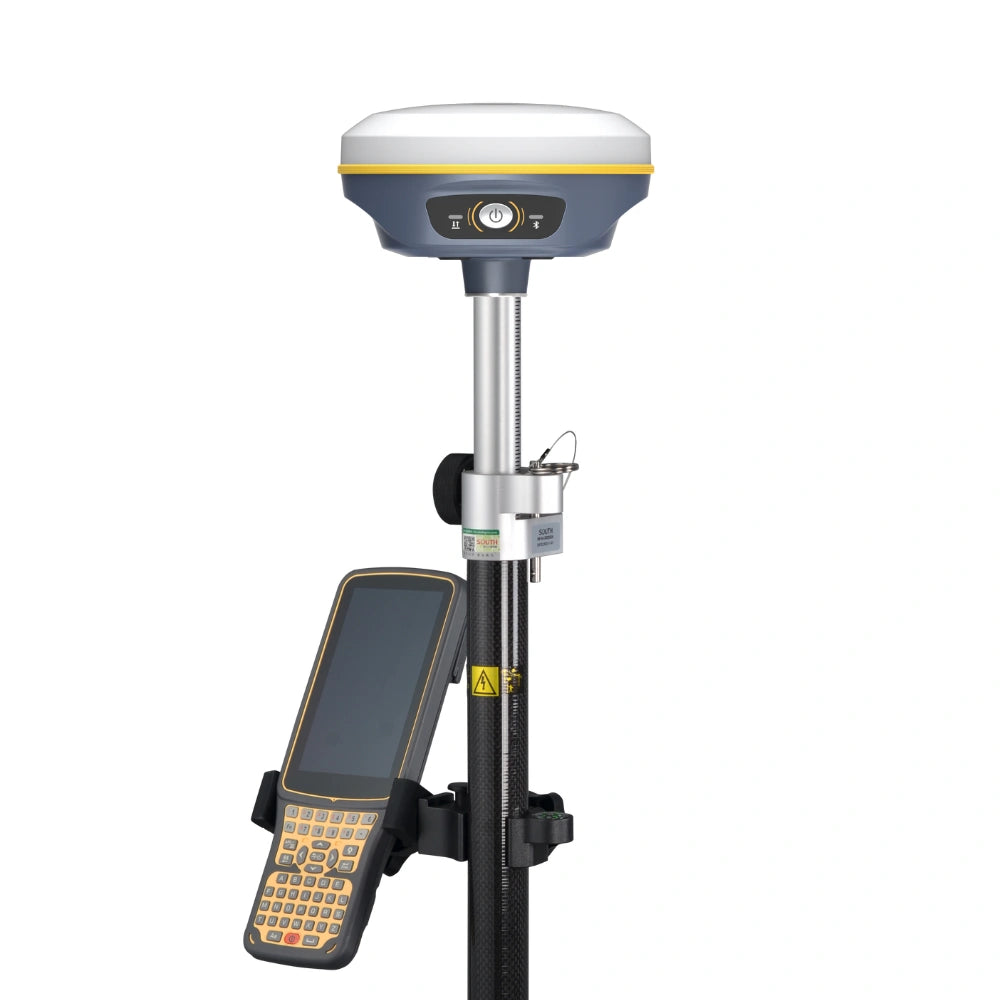

South Insight V2 GNSS Rover Set

$4,536.89
4.8

Contact us for the best deal on this product.


South INSIGHT V2 GNSS RTK Rover combines 60° IMU tilt, AR stakeout, and real-time RTK accuracy. Built with 4G LTE, UHF, Wi-Fi, and Bluetooth, it's a rugged and compact solution for field surveyors.

Secure Payments
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
Shop Pay
Visa
  • Quick worldwide shipping with trusted carriers
  • Multiple safe payment options for peace of mind
  • Professional advice to choose the right equipment
  • 24/7 premium customer assistance

Product Information

Professional GNSS Rover with 60° Tilt Compensation

The South INSIGHT V2 GNSS RTK Rover delivers centimeter-level accuracy with revolutionary IMU tilt technology. Built for demanding surveying professionals who need reliable positioning without compromise.


Revolutionary Tilt Technology

Advanced IMU compensation allows measurements at up to 60° pole inclination, eliminating the need for precise leveling. This breakthrough technology dramatically increases productivity while maintaining survey-grade accuracy, especially in challenging terrain or around obstacles.

Multi-Constellation Precision

Tracks all major GNSS systems including GPS, GLONASS, Galileo, BeiDou, and QZSS simultaneously for faster satellite acquisition and enhanced reliability. Multi-frequency tracking ensures consistent RTK performance even in challenging signal environments.


Key Professional Advantages

  • Complete connectivity suite: 4G LTE, UHF radio, Wi-Fi, and Bluetooth
  • Hot-swappable batteries for uninterrupted fieldwork
  • IP67 waterproof rating with 1.5m drop resistance
  • Compact, lightweight design for extended field sessions

Built for Real-World Conditions

Engineered to withstand the demands of professional surveying environments. From construction sites to remote mapping projects, the INSIGHT V2 delivers consistent performance when accuracy matters most. The rugged construction and intelligent design features ensure reliable operation in any weather condition.

GNSS Channels: 1598

Supported Systems: GPS, GLONASS, BeiDou, Galileo, QZSS, SBAS, IRNSS

Positioning Accuracy:

  • RTK: 8 mm + 1 ppm (horizontal), 15 mm + 1 ppm (vertical)
  • Static: 2.5 mm + 0.1 ppm (horizontal), 3 mm + 0.4 ppm (vertical)
  • PPK: 3 mm + 1 ppm (horizontal), 5 mm + 1 ppm (vertical)
  • IMU Tilt Correction: < 8 mm + 0.7 mm/° tilt, up to 60°

Initialization Time: < 10 seconds

IMU Technology: Calibration-free, magnetic interference-resistant

Battery: 6800mAh Li-ion, up to 12 hours (rover mode)

Dimensions: 131mm × 80mm

Weight: 800g

Material: Magnesium aluminum alloy shell

Environmental Protection: IP68-rated, MIL-STD-810G drop resistance

Communication & Connectivity:

  • Farlink UHF radio (up to 8km range)
  • WiFi Hotspot, Bluetooth 4.2
  • NFC for fast pairing

Data Storage:

  • 4GB SSD internal storage, expandable up to 32GB
  • USB plug-and-play data transfer
  • Supports RTCM, Rinex, and NMEA formats

Special Features:

  • AR-assisted stakeout with 2MP camera
  • Intelligent power management for extended endurance
  • Electronic bubble for real-time leveling

Features :

60° IMU Tilt Survey
Work at any angle up to 60° without leveling the pole
Centimeter RTK Accuracy
Fast initialization with reliable positioning precision
Full GNSS Constellation
GPS, GLONASS, Galileo, BeiDou, and QZSS support
AR Stakeout Technology
Augmented reality visualization for precise point location
Built-in UHF Radio
410-470 MHz internal radio for base station communication
Multi-Connectivity Options
4G LTE, Wi-Fi, Bluetooth, and UHF for any field condition
Rugged Field Design
IP67 rated with shock-resistant construction
Extended Battery Life
All-day operation with hot-swappable battery system
Download Center
Reviews :
4.9/5
★★★★★
Based on verified reviews
★★★★★
Marcus Thompson
Senior Land Surveyor · Verified Purchase
Revolutionary IMU Tilt Technology
The 60-degree IMU tilt compensation is a game-changer for challenging terrain surveys. RTK accuracy remains consistent even when the pole is significantly tilted, dramatically reducing survey time. The AR stakeout feature provides exceptional visual guidance that eliminates guesswork in the field.
★★★★★
Sarah Chen
Project Manager, Civil Engineering · Verified Purchase
Outstanding Connectivity and Reliability
The multi-communication platform featuring 4G LTE, UHF, Wi-Fi, and Bluetooth ensures seamless data transfer in any environment. We've experienced zero connectivity issues across various project sites, from urban areas to remote locations. Build quality is exceptional and withstands harsh field conditions.
★★★★★
Robert Martinez
Licensed Professional Surveyor · Verified Purchase
Precision Engineering at Its Best
After six months of intensive field use, the INSIGHT V2 consistently delivers sub-centimeter accuracy in RTK mode. The compact design doesn't compromise performance, and the intuitive interface reduces training time for new operators. This system has significantly improved our survey productivity.
★★★★★
Jennifer Walsh
Geospatial Technology Specialist · Verified Purchase
Advanced Features Meet Field Durability
The AR stakeout functionality transforms complex layout work into an intuitive visual process, reducing measurement errors significantly. Combined with the robust construction and excellent battery life, this rover handles demanding surveying applications with professional-grade reliability. Highly recommend for serious surveying operations.
★★★★☆
David Kim
Construction Survey Manager · Verified Purchase
Excellent Performance with Minor Learning Curve
The INSIGHT V2 delivers exceptional accuracy and the multi-connectivity options are invaluable for our diverse project requirements. The AR features require some initial familiarization, but once mastered, they significantly enhance field efficiency. Overall, a solid investment for professional surveying teams.

What's in the Box

Everything you need to get started.

  • Hot-swappable lithium-ion batteries (3400mAh each)
  • Dual-slot battery charger with power adapter
  • UHF radio antenna
  • USB-C charging & data cable
  • SIM tray tool
  • Controller holder (if purchased with controller)
  • Rugged transport case

Note: Optional accessories sold separately.

Frequently Asked Questions

General
What is the maximum tilt angle supported by the INSIGHT V2's IMU technology?
The South INSIGHT V2 GNSS Rover supports up to 60° tilt compensation using its integrated IMU (Inertial Measurement Unit) technology. This allows surveyors to maintain RTK accuracy even when the pole is not perfectly vertical, significantly improving field productivity and measurement efficiency.
What communication options are available for RTK corrections?
The INSIGHT V2 offers multiple communication channels including 4G LTE cellular connectivity, UHF radio, Wi-Fi, and Bluetooth. This comprehensive connectivity ensures reliable RTK correction reception in various field environments and allows seamless integration with existing surveying workflows and base station configurations.
How does the AR stakeout feature enhance field operations?
The AR (Augmented Reality) stakeout feature overlays digital survey data onto the real-world camera view on your field controller or smartphone. This technology enables surveyors to visualize design points, lines, and surfaces directly in the field environment, reducing stakeout time and minimizing errors by providing intuitive visual guidance to target locations.
What RTK accuracy specifications can be expected with the INSIGHT V2?
The South INSIGHT V2 delivers centimeter-level RTK positioning accuracy in real-time. Typical horizontal accuracy is ±8mm + 1ppm RMS, with vertical accuracy of ±15mm + 1ppm RMS under standard RTK conditions. The advanced GNSS engine tracks multiple satellite constellations including GPS, GLONASS, Galileo, and BeiDou for enhanced reliability and faster convergence times.
Is the INSIGHT V2 suitable for harsh environmental conditions?
Yes, the INSIGHT V2 features a rugged, weatherproof design engineered for professional surveying applications. The receiver meets IP67 ingress protection standards, ensuring reliable operation in dust, rain, and extreme temperatures. Its compact yet durable construction is designed to withstand the demanding conditions encountered in construction, engineering, and geospatial surveying projects.
