Leica Style

Leica Style MPR122M 360° Prism

$659.51
5.0

Contact us for the best deal on this product.


The MPR122M 360-degree prism for Leica total stations offers full angular coverage, high accuracy, and robust construction, perfect for a variety of surveys that you may have in mind. It makes it a reliable and cost-effective choice for Leica total station users who want a professional tool for the job that produces results.

Secure Payments
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
Shop Pay
Visa
  • Quick worldwide shipping with trusted carriers
  • Multiple safe payment options for peace of mind
  • Professional advice to choose the right equipment
  • 24/7 premium customer assistance

Product Information

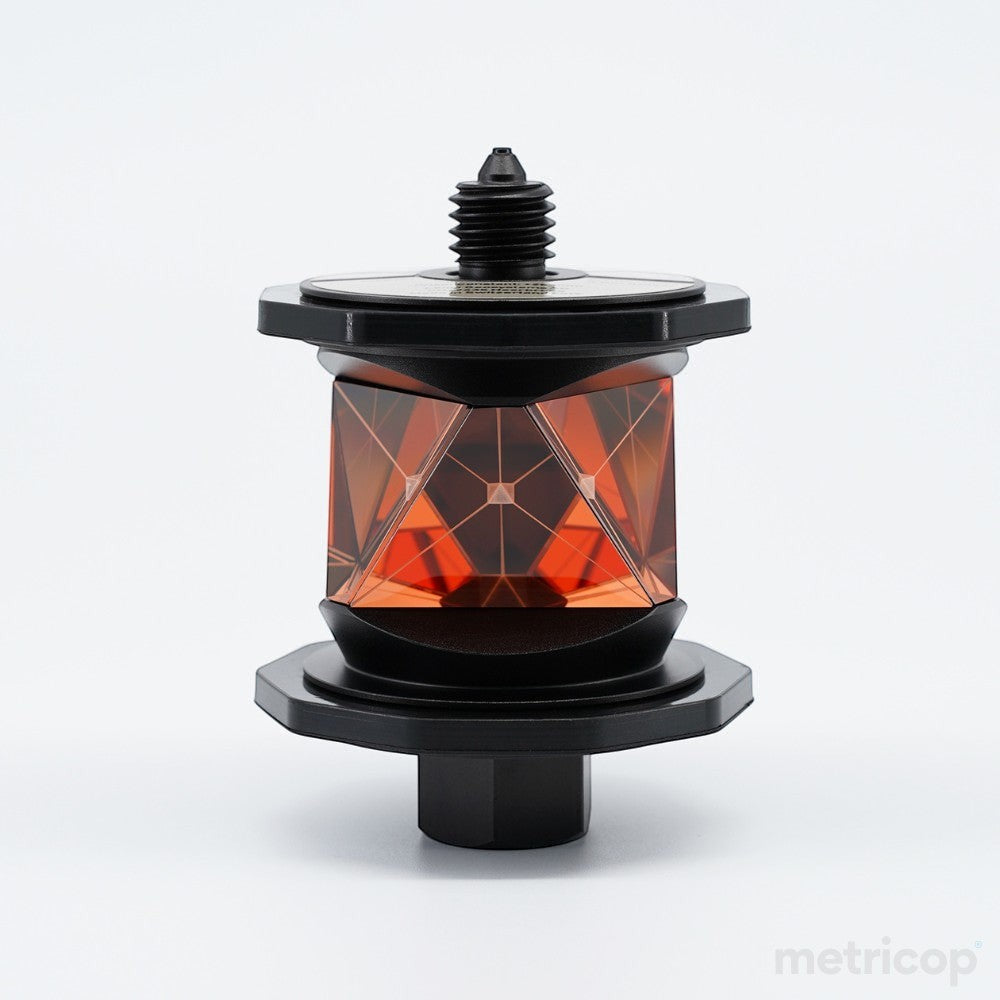

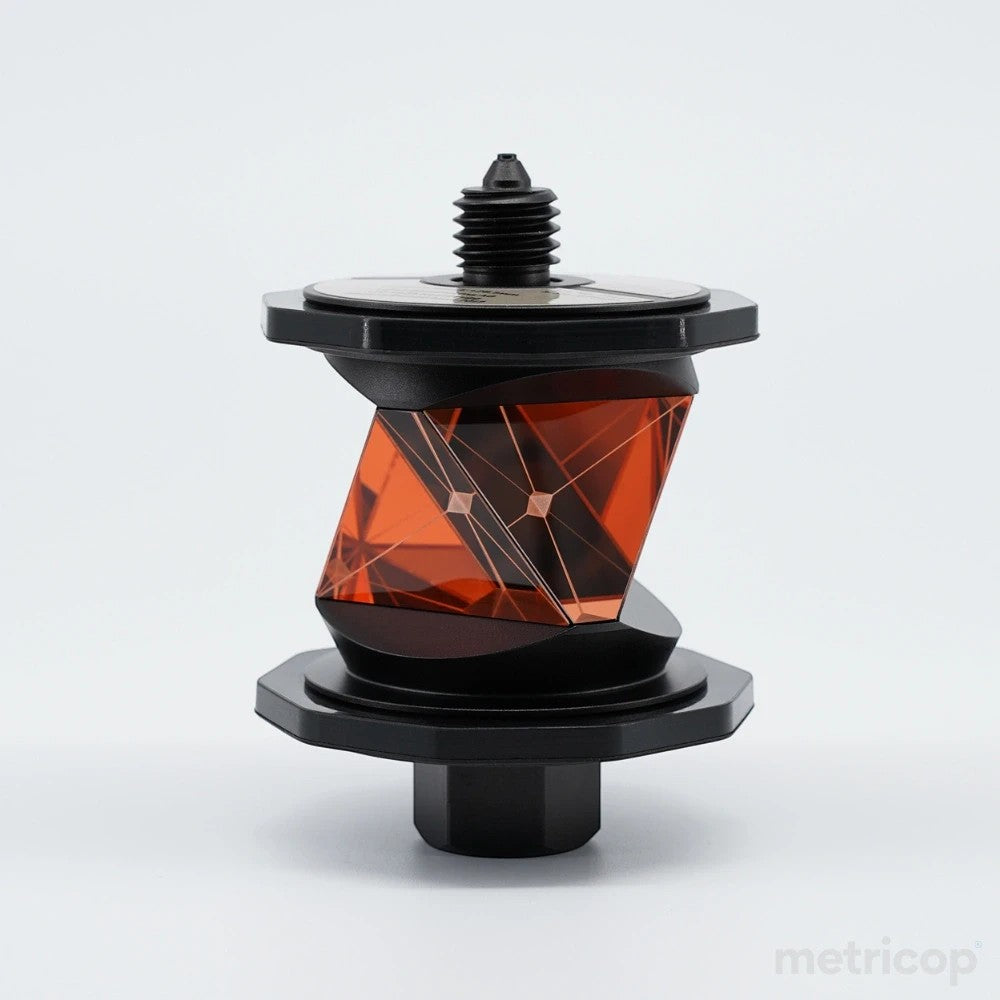

Leica Style MPR122M 360° Prism

A precision-engineered 360-degree prism designed specifically for Leica total stations, delivering full angular coverage and exceptional accuracy for professional surveying applications. Built with robust copper coating and reliable construction for consistent performance in demanding field conditions.


Complete Angular Coverage

The 360-degree prism design eliminates blind spots and reduces setup time by allowing measurements from any angle. With a working range extending up to 300 meters, you can maintain productivity across large survey areas without compromising measurement quality or requiring frequent repositioning.

Precision Engineering

Engineered with ±2.0mm centering accuracy and a precisely calibrated +28.1mm offset, this prism ensures consistent, reliable measurements that meet professional surveying standards. The robust copper coating provides long-lasting durability while maintaining optimal reflective properties in all weather conditions.


Key Advantages

  • Full 360-degree angular coverage eliminates measurement blind spots
  • 300-meter working range for versatile field applications
  • ±2.0mm centering accuracy for professional-grade precision
  • Robust copper coating ensures long-term durability and performance
  • Seamless compatibility with Leica total station systems
  • Model: MPR122-M
  • For Total Station: Leica-compatible
  • Height Offset: 50.0mm
  • Prism Constant: +28.1mm
  • Beam Deviation: 3 arcseconds
  • Working Range: 1000 ft. (300m)
  • Mount: 5/8" x 11 male and female thread
  • Prism Height: 100mm
  • Material Coating: Copper
  • Carrying Bag: Yes

Features :

360° Full Coverage

Complete angular measurement capability without repositioning the prism

High Precision Accuracy

±2.0mm centering accuracy with 3 arcsecond beam deviation tolerance

Extended Range Performance

Reliable measurements up to 1000 ft (300m) for comprehensive project coverage

Offset Compensation

+28.1mm prism constant maintains accuracy even when slightly off-center

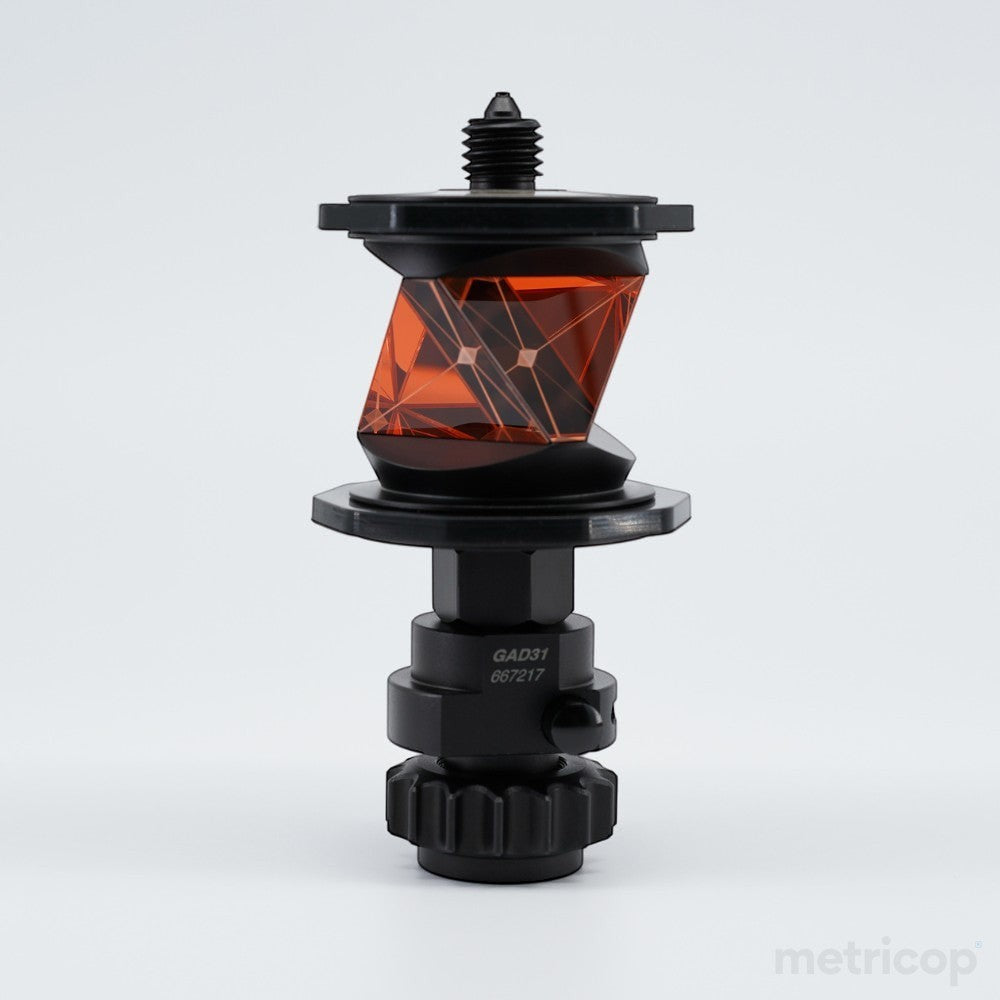

Versatile Mounting System

Dual 5/8" x 11 male and female connectors for flexible equipment attachment

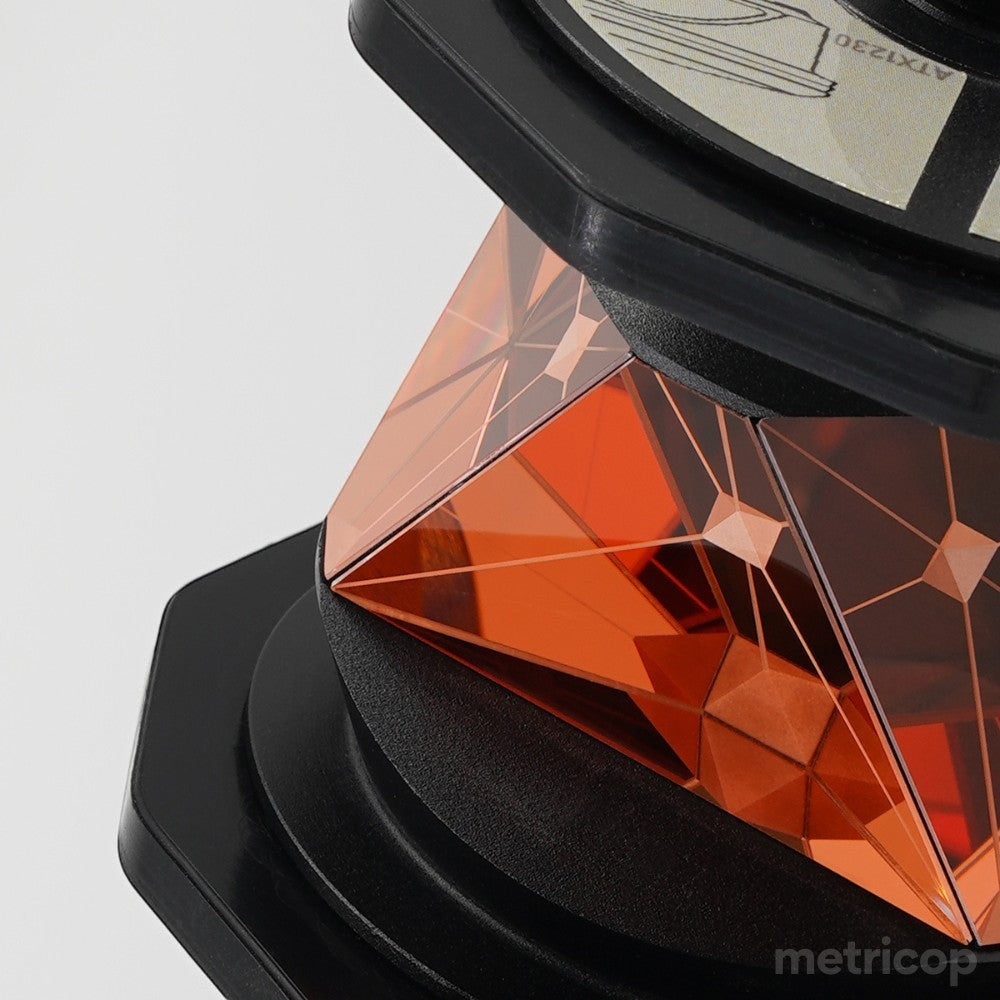

Enhanced Reflectivity

Copper-coated prism surface delivers superior light reflection and durability

Compact Design

100mm height profile ensures easy portability and field maneuverability

Complete Field Package

Includes protective carrying bag for secure transport and storage

Download Center
Reviews :
4.9/5
★★★★★
Based on verified reviews
★★★★★
Michael Rodriguez
Senior Land Surveyor · Verified Purchase
Exceptional 360° Coverage Performance
The MPR122M delivers outstanding full angular measurement capability with our Leica total station fleet. Build quality matches OEM standards while maintaining precise reflectance characteristics across all measurement angles. This prism has significantly improved our field efficiency on complex boundary surveys requiring multiple instrument positions.
★★★★★
Sarah Chen
Construction Site Manager · Verified Purchase
Robust Construction for Daily Field Use
After six months of heavy construction layout work, this 360° prism shows no signs of wear or accuracy degradation. The robust housing withstands drops and harsh site conditions while maintaining consistent measurement precision. Perfect compatibility with our Leica TS16 total station makes this an excellent value proposition for professional applications.
★★★★★
James Thompson
Geodetic Engineer · Verified Purchase
Outstanding Accuracy and Range Performance
Measurement accuracy consistently matches our reference standards across the full 360° range with excellent signal return strength. The prism's optical design provides reliable EDM performance even in challenging atmospheric conditions. Cost-effective alternative that doesn't compromise on professional measurement requirements.
★★★★☆
Lisa Mitchell
Municipal Surveyor · Verified Purchase
Reliable Performance with Minor Mounting Considerations
Delivers consistent angular measurements and integrates seamlessly with our Leica equipment for municipal infrastructure surveys. Threading quality could be slightly improved for frequent pole mounting applications. Overall performance and value make this a solid choice for routine topographic and boundary work.
★★★★★
Robert Wilson
Principal Surveyor · Verified Purchase
Professional Grade Solution at Competitive Price
The MPR122M provides enterprise-level measurement performance at a fraction of OEM pricing without sacrificing accuracy or durability. Excellent addition to our survey equipment inventory for high-volume projects. Full 360° coverage eliminates the need for prism repositioning in complex measurement scenarios.

What's in the Box

Everything you need to get started.

  • MPR122M 360° Prism Assembly
  • Precision Mounting Base
  • Adjustment Screws Set
  • Protective Carrying Case

Note: Prism pole and tribrach sold separately.

Frequently Asked Questions

General
Is the MPR122M 360° Prism compatible with all Leica total stations?
The MPR122M is specifically designed for Leica total stations and maintains optimal compatibility with the majority of Leica models. For specific compatibility verification with your instrument model, consult your total station's technical specifications or contact technical support.
What is the measurement accuracy of the 360° prism?
The MPR122M delivers professional-grade accuracy suitable for precise surveying applications. The exact accuracy specifications depend on your total station's capabilities, as the prism maintains consistent optical performance across the full 360-degree range without significant measurement deviation.
What makes this prism suitable for various survey applications?
The 360-degree angular coverage eliminates the need for precise prism orientation, making it ideal for topographic surveys, construction layout, monitoring applications, and rapid data collection scenarios. Its robust construction ensures reliable performance in challenging field conditions across diverse surveying projects.
How does the 360° design improve surveying efficiency?
The full angular coverage allows measurements from any direction without requiring prism repositioning or manual orientation adjustments. This significantly reduces setup time, eliminates measurement delays, and increases productivity in field operations while maintaining consistent measurement quality regardless of instrument position.
What mounting options are available for the MPR122M prism?
The MPR122M features standard threading compatible with most surveying poles, tribrach adapters, and mounting accessories. This versatile mounting system allows for use with fixed installations, handheld applications, or traditional prism pole setups depending on your specific surveying requirements.

Still have questions? Contact our technical support team.
