3DMakerpro Raven Portable LiDAR Scanner

$1,699.00 $1,359.00 Save 20%

Contact us for the best deal on this product.


The 3DMakerpro Raven is a portable LiDAR scanner for rapid spatial capture, as-built documentation and 3D mapping. It records up to 150,000 points per second across a 360° horizontal by 40° vertical field of view, with stated accuracy of 2 cm at 10 m.

Enhanced SLAM combines point-cloud, image and IMU data to cross-check alignment as the operator moves through a site. The Raven Max RTK edition also incorporates GPS data and centimeter-level absolute positioning, allowing captured geometry to be tied to geographic coordinates.

A scan radius of 40 m at 10% reflectivity or 50 m at 80% reflectivity supports efficient capture of buildings, infrastructure and other large environments. The integrated 12 MP camera system records 4K imagery for colorized point clouds and visual reconstruction, while optional compatible 360 cameras can extend RGB capture workflows.

The quick-swap 12,000 mAh battery supports up to two hours of operation. At 1.1 kg, the scanner is suited to mobile capture for architecture, construction, surveying, infrastructure documentation, engineering, heritage recording and forensic scene reconstruction.

Choose the standard Raven for a single-camera configuration, Raven Max for two cameras, or Raven Max RTK when centimeter-level absolute positioning and georeferenced outdoor data are required. GPS positioning is exclusive to the Raven Max RTK edition.

Benefits

  • Captures large indoor and outdoor environments without static scanner setups at every position.
  • Reduces field time for as-built surveys, infrastructure records and site documentation.
  • Provides color and geometry from one mobile capture workflow.
  • Exports data in common formats for transfer into third-party processing and design systems.
  • Offers an RTK-equipped configuration where absolute georeferencing is required.

Applications

  • Architecture, construction and BIM-ready as-built capture
  • Infrastructure documentation and topographic analysis
  • Real estate, interiors and digital twins

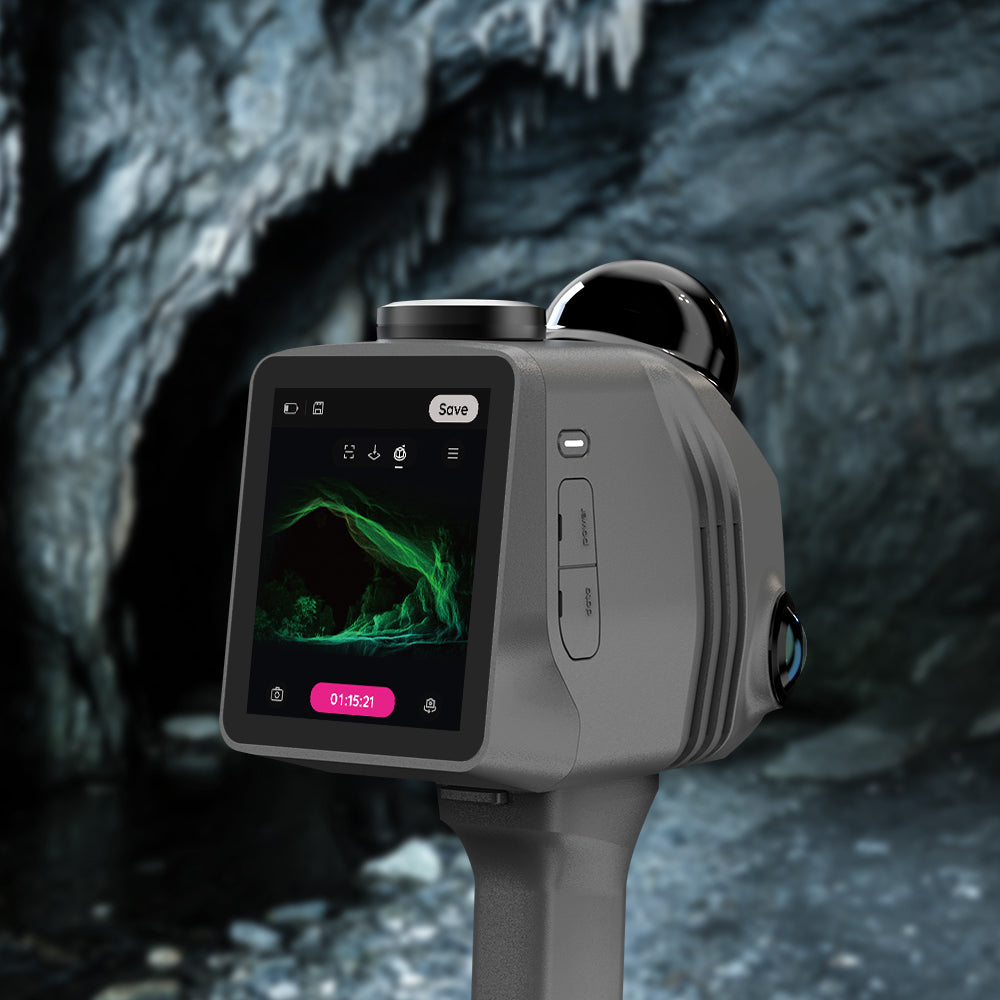

  • Engineering, geology and cave cross-sections
  • Cultural heritage documentation
  • Public safety and forensic scene reconstruction
  • Media, VFX, gaming and Gaussian Splatting

Warranty

Two-year warranty.

Portable LiDAR Scanner: Raven LiDAR Scanner
Secure Payments
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
Shop Pay
Visa
  • Quick worldwide shipping with trusted carriers
  • Multiple safe payment options for peace of mind
  • Professional advice to choose the right equipment
  • 24/7 premium customer assistance
Portable LiDAR Scanner

Product Information

The 3DMakerpro Raven is a handheld SLAM LiDAR scanner for mobile point-cloud capture across buildings, infrastructure and complex indoor or outdoor environments. It is intended for teams that need rapid spatial documentation without moving a static scanner between multiple setups.

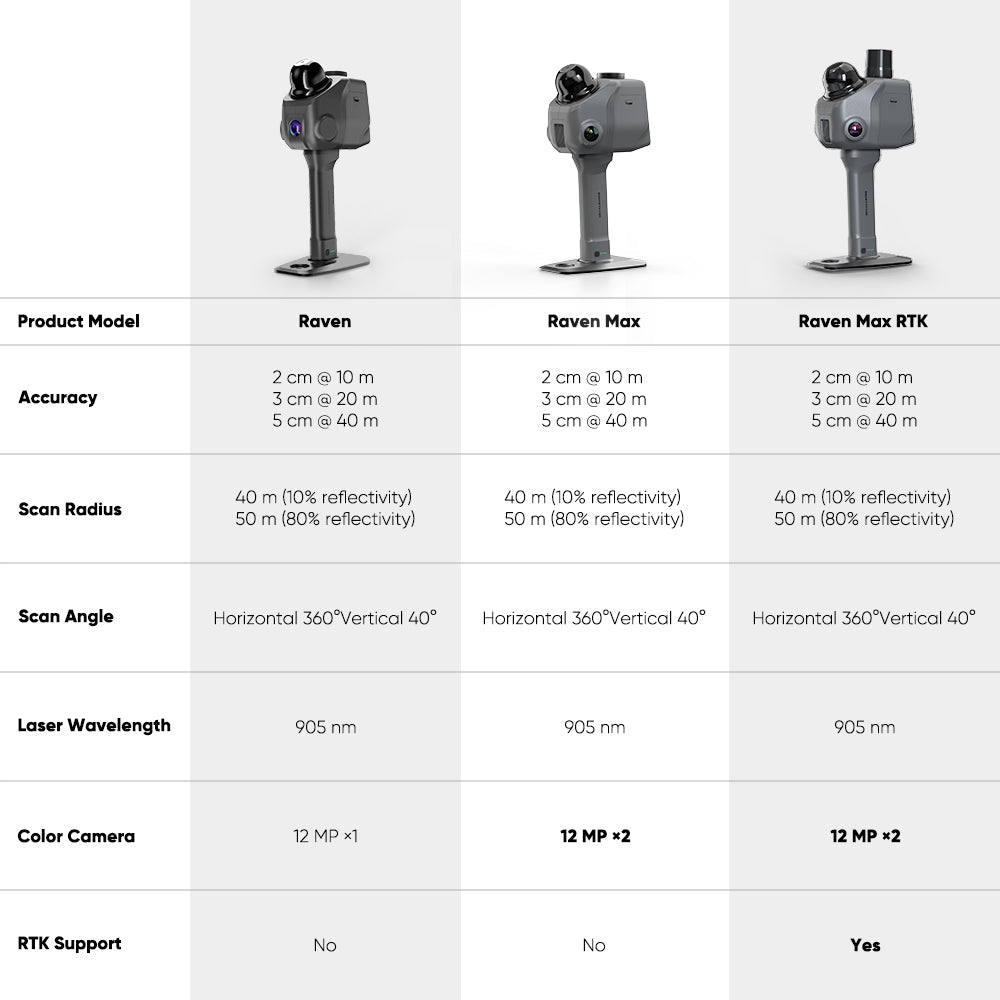

Three editions address different capture requirements: a single-camera standard model, a dual-camera Max model and a Max RTK model for centimeter-level absolute positioning.

Accuracy

Accuracy At 10 M: 2 cm

Accuracy At 20 M: 3 cm

Accuracy At 40 M: 5 cm

Measurement

Scan Radius: 40 m at 10% reflectivity; 50 m at 80% reflectivity

Point Cloud Frequency: 150,000 points/s

Field Of View: 360° horizontal × 40° vertical

Minimum Scanning Distance: 50 cm

Imaging

Camera Resolution: 12 MP

Power

Operating Time: Up to 2 hours

Communication

Interfaces: USB Type-C and Wi-Fi 5

Physical

Weight: 1.1 kg

Software

Output Formats: LAS, PCD, PLY, OBJ, E57 and XYZ

Features :

  • Stated accuracy of 2 cm at 10 m supports as-built capture and site documentation where survey-grade millimetre tolerances are not required.
  • A capture rate of 150,000 points per second records dense spatial data while the operator moves through the site.
  • The 360° horizontal and 40° vertical field of view increases coverage per pass and reduces unobserved areas.
  • Enhanced SLAM cross-validates point-cloud, image and IMU data to improve alignment during handheld capture.
  • A 40 m radius at 10% reflectivity and 50 m at 80% reflectivity supports efficient collection in large spaces.
  • The 12 MP camera system records 4K imagery for colorized point clouds and visual scene reconstruction.
  • Up to two hours of battery operation and a quick-swap grip help maintain productivity on extended field assignments.
  • LAS, PCD, PLY, OBJ, E57 and XYZ exports support data transfer into downstream point-cloud and design workflows.
  • The Raven Max RTK edition provides centimeter-level absolute positioning for georeferenced outdoor capture.
Download Center
Reviews :

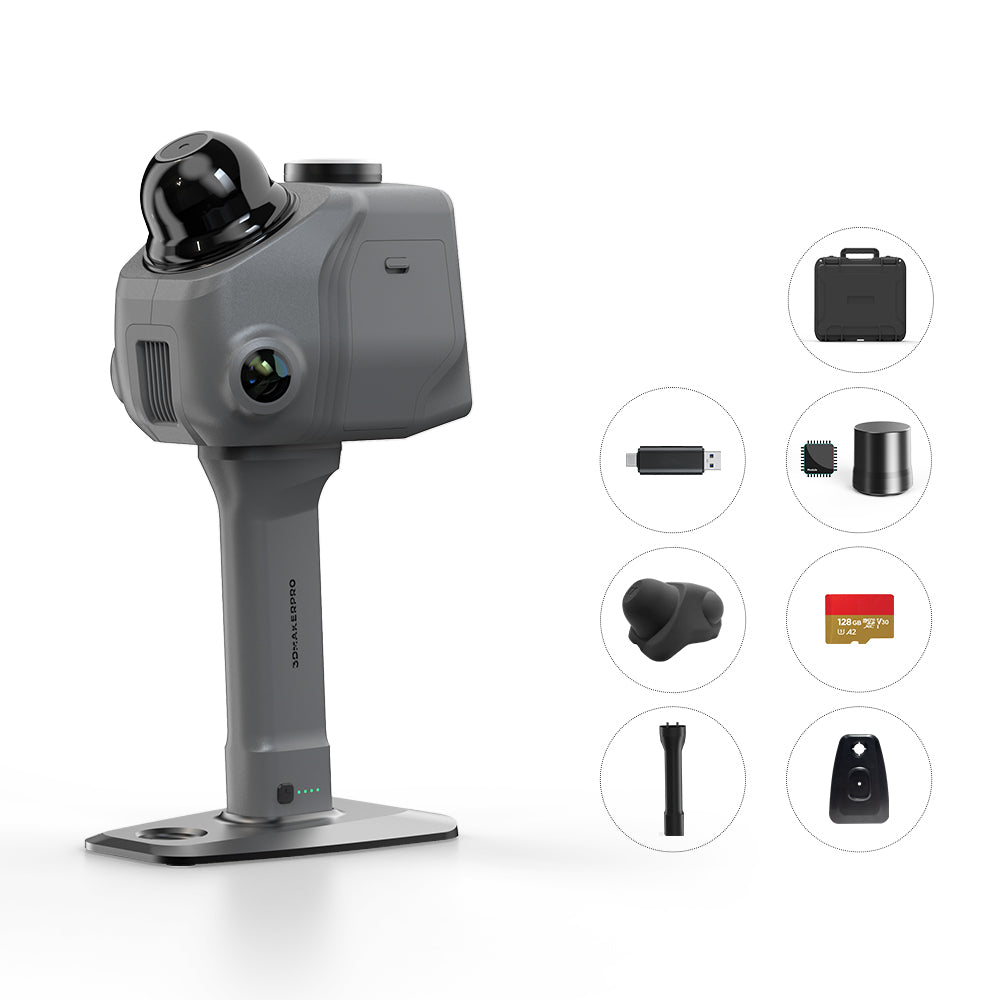

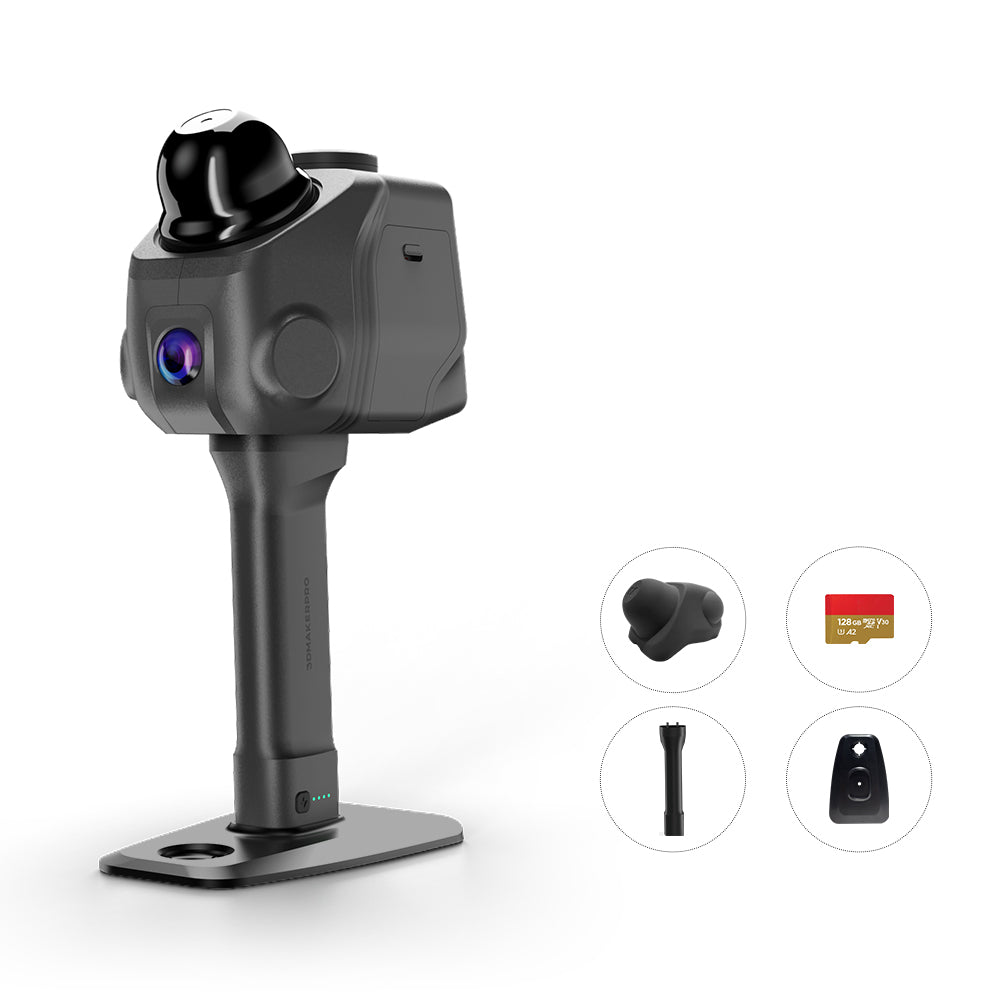

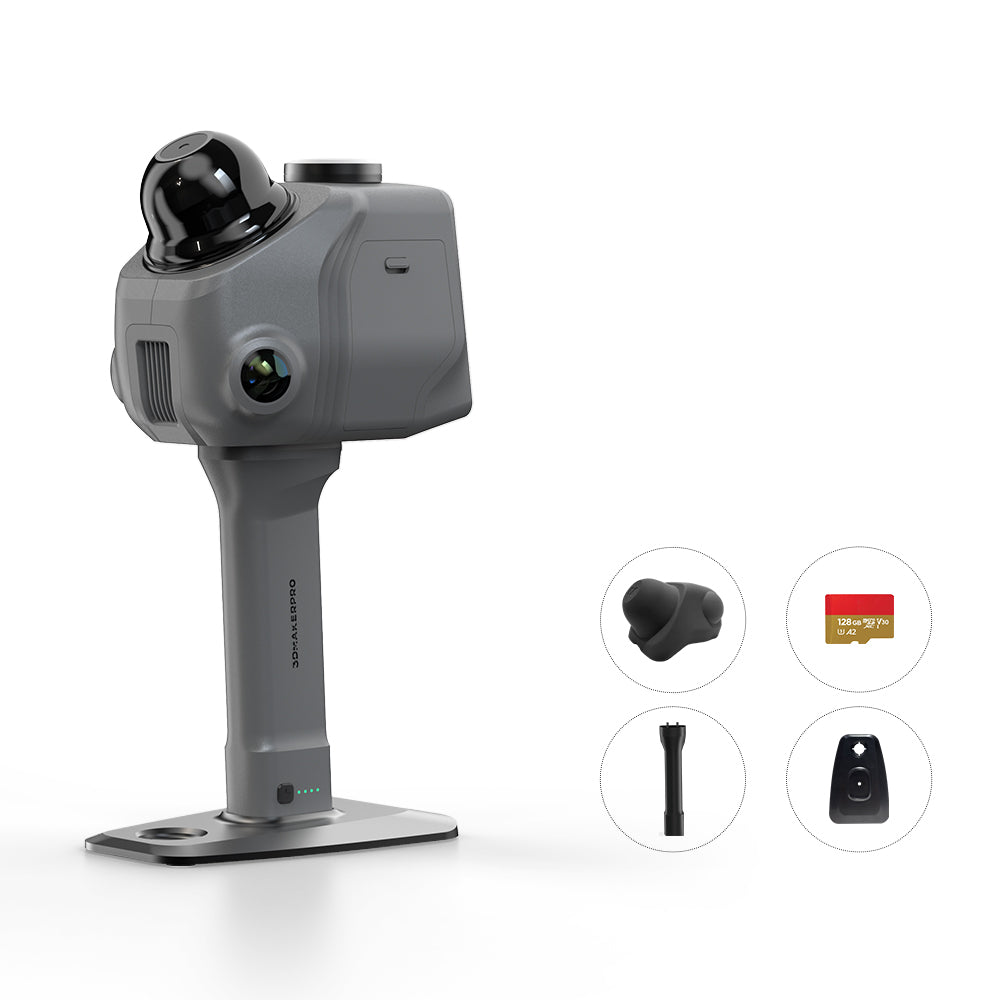

  • Raven LiDAR scanner
  • Battery grip
  • Holder base
  • Protective case
  • TF card 128GB

Q: Does every Raven edition include RTK positioning?
A: No. GPS and RTK positioning are exclusive to the Raven Max RTK edition; the RTK module is not offered as a separate add-on.

Q: What is the closest working distance?
A: The scanner can capture from a minimum distance of 50 cm.

Q: Which processing software is supplied?
A: RayStudio is the official companion application for processing, inspecting and exporting Raven scan data.

Q: Is RayStudio compatible with macOS?
A: No. The listed operating-system requirement is Windows 11 or later, and macOS is not supported.

Q: Can Raven data be transferred to other point-cloud software?
A: Yes. The scanner exports LAS, PCD, PLY, OBJ, E57 and XYZ files for downstream processing.

Q: How long is the warranty?
A: The confirmed warranty period is two years.
