JEOC

Swiss Spigot to 1.5" SMR or Ball Reflector Adapter, 86 mm Target Height

$149.00

Contact us for the best deal on this product.

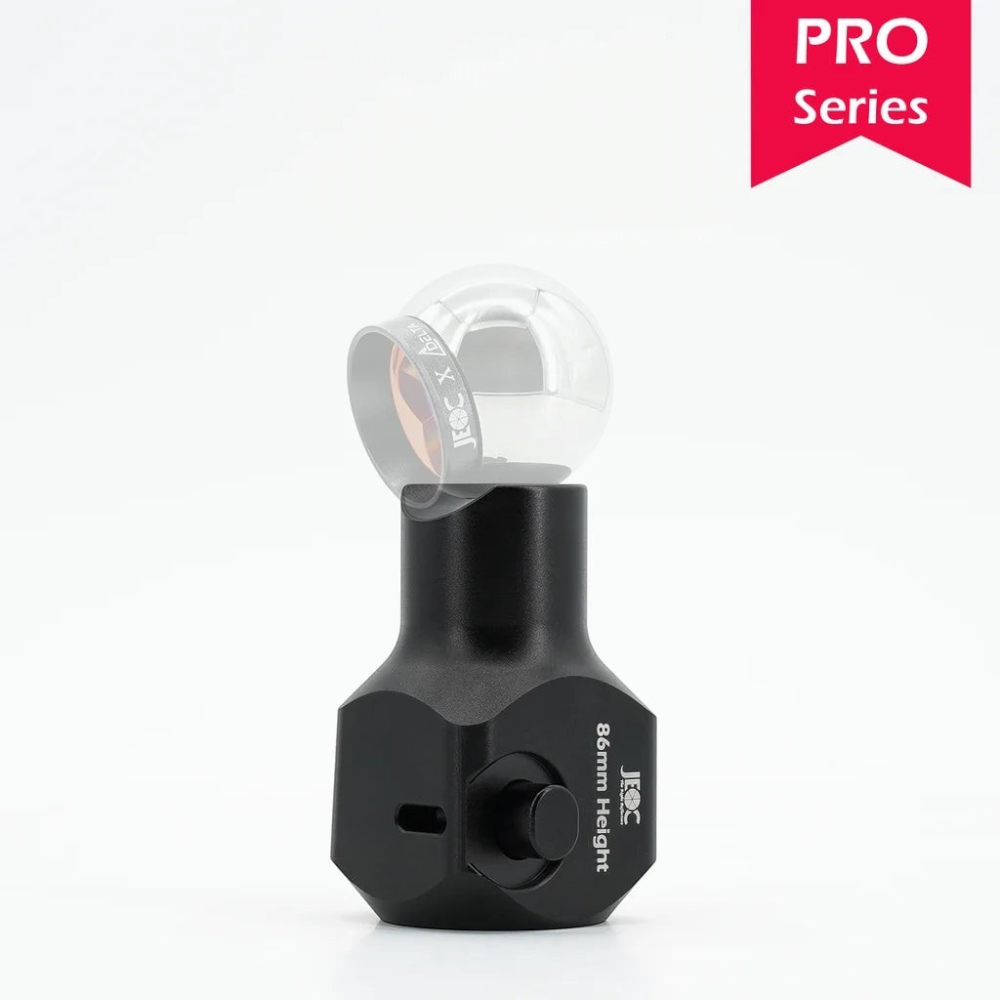

The reflector adapter provides an interface between a Swiss spigot and a 1.5-inch SMR or ball reflector. Its defined 86 mm target height supports reflector positioning in compatible measurement setups.

An N52 neodymium magnet retains the reflector, while the ergonomically designed button supports handling during installation and removal. The adapter provides a 17.37° look-down angle.

This configuration is intended for professional measurement workflows that require a 1.5-inch SMR or ball reflector to be mounted on a Swiss spigot. Confirm the required reflector diameter, spigot interface and 86 mm target height against the measurement procedure before ordering.

Benefits

  • Connects the stated reflector format to a Swiss spigot without changing the specified target height.
  • Magnetic retention supports reflector installation and removal during measurement setup.
  • The published target height and look-down angle allow the adapter geometry to be checked before procurement.

Applications

  • Professional measurement setups using a 1.5-inch SMR
  • Ball-reflector mounting on a Swiss spigot
  • Industrial metrology reflector positioning
Secure Payments
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
Shop Pay
Visa
  • Quick worldwide shipping with trusted carriers
  • Multiple safe payment options for peace of mind
  • Professional advice to choose the right equipment
  • 24/7 premium customer assistance

Product Information

This adapter mounts a 1.5-inch SMR or ball reflector on a Swiss spigot. It is intended for professional measurement setups requiring an 86 mm target height and a defined reflector interface.

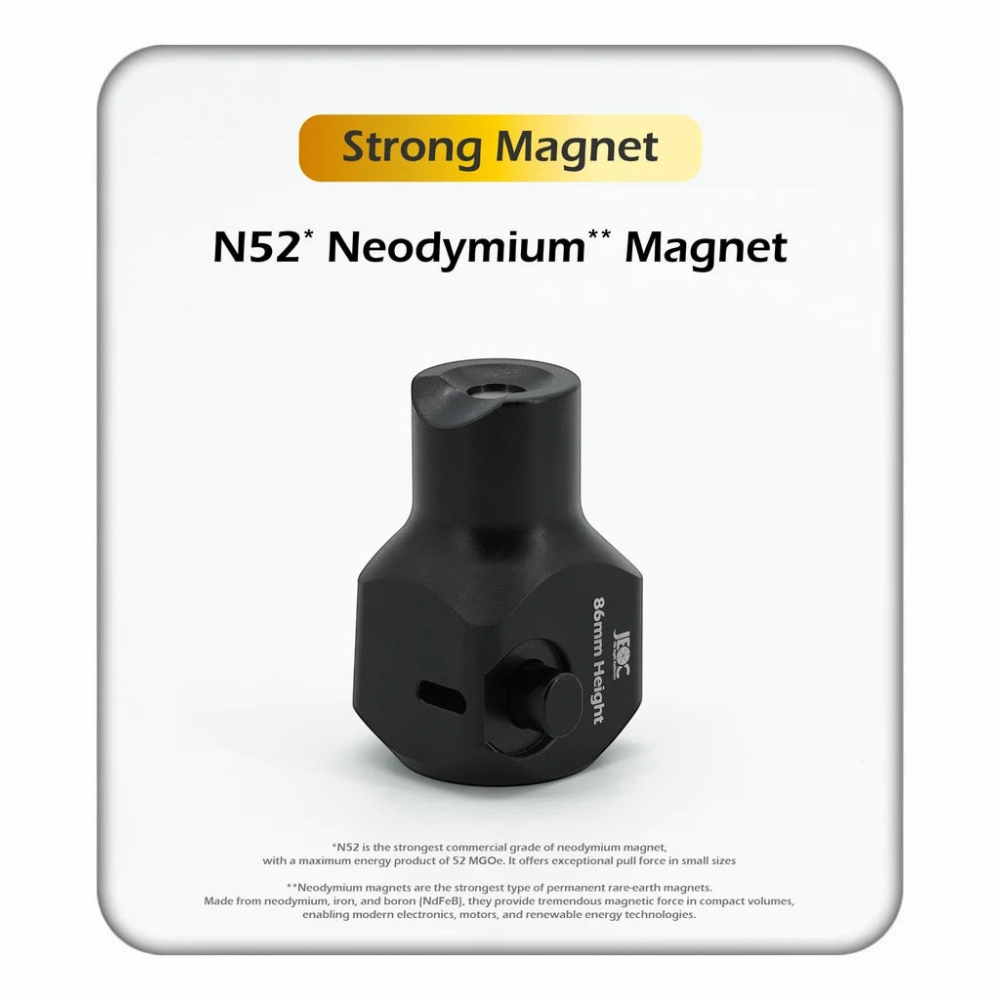

An N52 neodymium magnet retains the reflector, and the adapter geometry provides a stated 17.37° look-down angle.

General

Adapter Interface: Swiss spigot

Reflector Compatibility: 1.5-inch SMR or ball reflector

Button Design: Ergonomically designed

Measurement

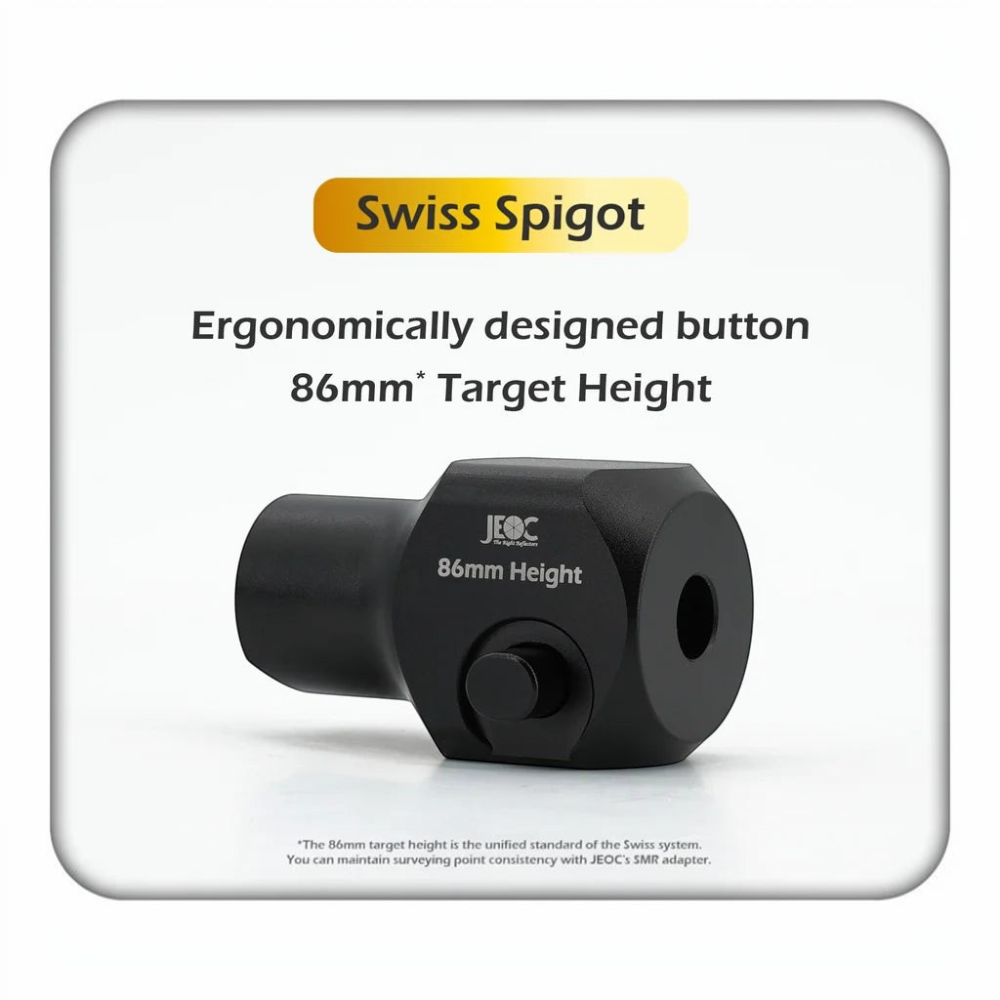

Target Height: 86 mm

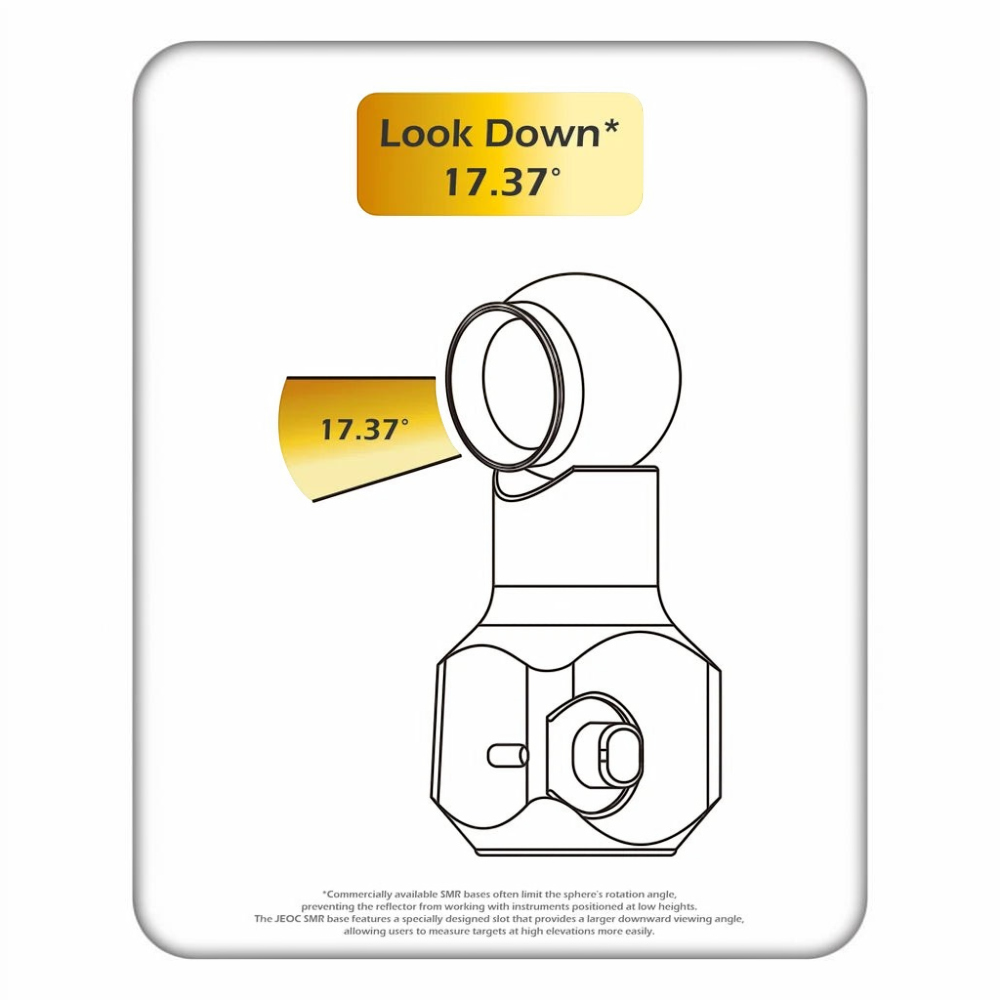

Look Down Angle: 17.37°

Magnet Type: N52 neodymium

Magnet Strength: Strong

Features :

  • The Swiss spigot interface connects the adapter to the stated mounting format.
  • Compatibility with a 1.5-inch SMR supports the specified spherical reflector workflow.
  • Compatibility with a 1.5-inch ball reflector provides an alternative reflector format within the same stated size.
  • The 86 mm target height provides a confirmed dimension for setup and measurement planning.
  • The 17.37° look-down angle documents the adapter's configured reflector geometry.
  • The N52 neodymium magnet provides strong magnetic retention of the reflector.
  • The ergonomically designed button supports handling during reflector installation and removal.
Download Center
Reviews :

Q: Is this adapter compatible with a 1.5-inch SMR?
A: Yes. The stated compatibility covers a 1.5-inch SMR or ball reflector.

Q: Does it fit a standard threaded survey mount?
A: The confirmed interface is a Swiss spigot. No threaded mounting interface or adapter is specified.

Q: What target height should be used?
A: The published target height is 86 mm.

Q: What magnet grade is fitted?
A: The adapter is specified with a strong N52 neodymium magnet.

Q: Are calibration data or an accuracy value supplied?
A: No calibration data or accuracy value is stated in the available product information.
