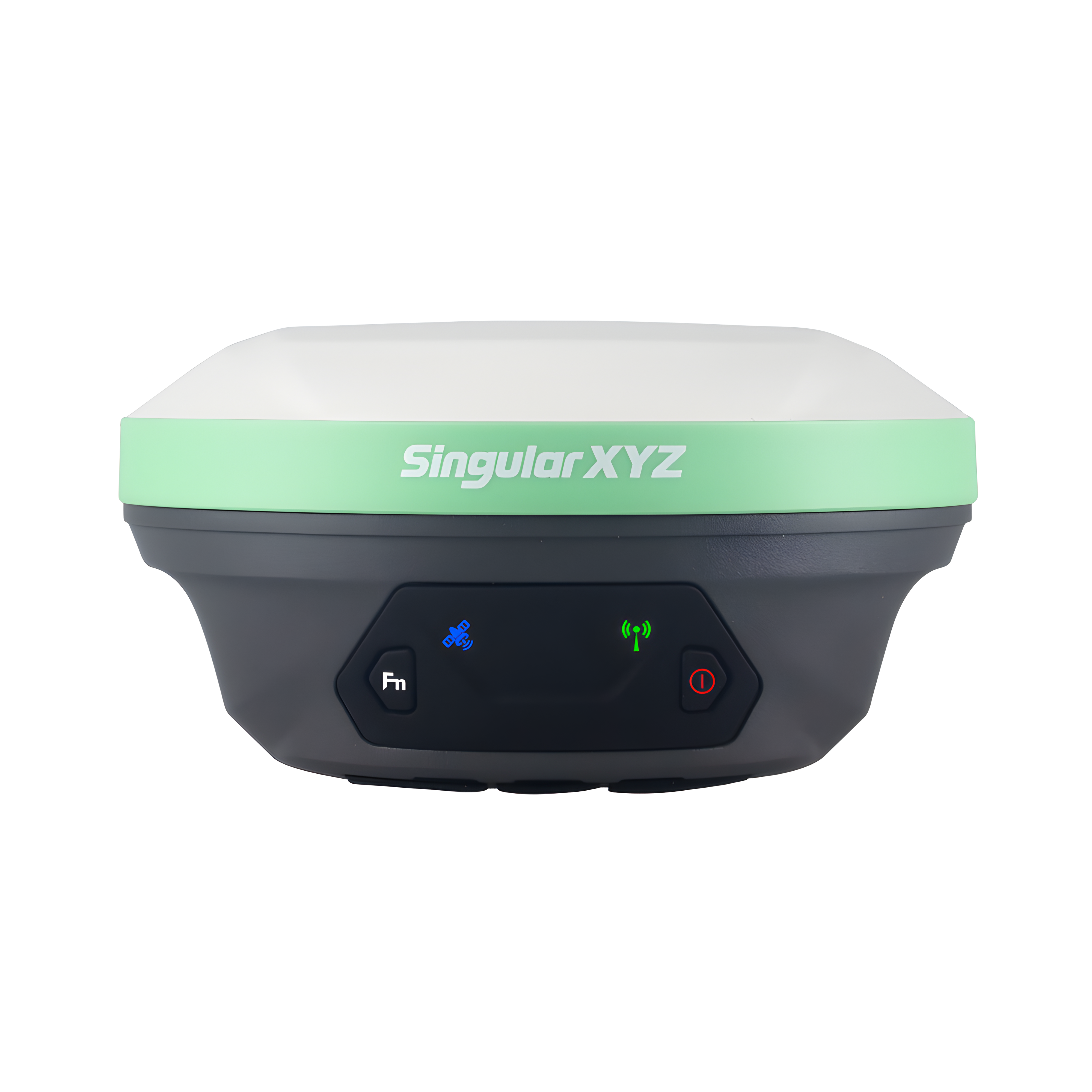

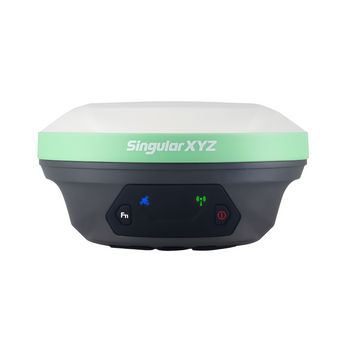

SingularXYZ X1 Pro GNSS Receiver

$3,640.57

Contact us for the best deal on this product.


The SingularXYZ X1 Pro GNSS receiver is a compact tool, a full-featured RTK system with an HD OLED color screen, tilt IMU, multi-protocol UHF, and 4G support. It is designed for demanding survey environments, allowing it to offer precise, stable, and flexible GNSS positioning no matter the situation in the field.

Watch the Singular X1 in Action

Secure Payments
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
Shop Pay
Visa
  • Quick worldwide shipping with trusted carriers
  • Multiple safe payment options for peace of mind
  • Professional advice to choose the right equipment
  • 24/7 premium customer assistance

Product Information

Professional-Grade GNSS Receiver for Demanding Survey Work

The SingularXYZ X1 Pro combines precision RTK positioning with intelligent tilt compensation and all-weather connectivity. Designed for survey professionals who need reliable performance in challenging environments, from dense urban canyons to remote construction sites.


Advanced Positioning Technology

Multi-constellation GNSS tracking delivers centimeter-level accuracy while the integrated 60-degree tilt IMU allows natural pole positioning without precise leveling. Enhanced anti-interference algorithms maintain signal integrity in challenging RF environments, ensuring consistent results regardless of surroundings.

Field-Ready Design & Connectivity

The ruggedized IP68 housing withstands harsh field conditions while the HD OLED display provides clear status information in direct sunlight. Multiple connectivity options including 4G, UHF, and Bluetooth ensure seamless data transmission and real-time corrections from any location.


Key Operational Advantages

  • Extended Battery Life: 20+ hour operation reduces downtime and increases productivity
  • Intuitive Operation: Voice status broadcast and HD display minimize learning curve
  • Versatile Deployment: Works as rover, base station, or reference station
  • Quick Setup: NFC pairing and automatic network detection streamline initialization
  • All-Environment Performance: Reliable positioning in urban, rural, and obstructed conditions

Accuracy

  • Standalone: 1.5 m (H) / 2.5 m (V)
  • DGPS: 0.4 m (H) / 0.8 m (V)
  • Static: 2.5 mm + 0.5 ppm (H) / 5 mm + 0.5 ppm (V)
  • RTK: 8 mm + 1 ppm (H) / 15 mm + 1 ppm (V)
  • PPP: 5 cm (H) / 10 cm (V)
  • SBAS: <1.0 m 3D RMS
  • Tilt: < ±2.5 cm within 60°
  • Time Accuracy: 20 ns

Satellite Tracking

  • Channels: 1408
  • Constellations: GPS, BDS, Galileo, GLONASS, QZSS, IRNSS, SBAS
  • L-Band: Supported
  • RTK Init: <5s
  • Re-acquisition: <1s
  • Cold Start: <30s
  • RTK Reliability: >99.9%

Communication

  • 4G Modem: Global bands (LTE, WCDMA, GSM, CDMA)
  • UHF Radio (up to 15km): LoRa TX/RX; RX: TRIMTALK, SATEL, TRIMMARK3
  • Bluetooth: BT 4.0 Dual Mode
  • WiFi: 802.11 a/b/g/n/ac
  • NFC: Supported

Ports:

  • RS232 (7-pin Lemo)
  • SIM card slot
  • TNC (UHF Antenna)
  • USB Type-C

Data Management

  • Output: NMEA-0183, RINEX 3.02/3.04, Binary (*.xyz)
  • Rate: 1–50 Hz
  • Correction: RTCM v3.0–3.3, CMR
  • Protocols: Ntrip (Client/Server/Caster), TCP

Power

  • Battery: 6700 mAh
  • Runtime: Over 20 hours
  • Charging: 3 hours fast charge
  • Input: 9–28V DC
  • Consumption: 2.0W

Physical

  • Dimensions: Φ133.5 mm × 67 mm
  • Weight: 870 g
  • Storage: 8 GB (expandable to 32 GB)
  • Housing: Magnesium-aluminum alloy
  • Optional: Built-in speaker for voice broadcast

Environment

  • Operating Temp: -40°C to +65°C
  • Storage Temp: -55°C to +85°C
  • Humidity: 100% non-condensing
  • Protection: IP68
  • Drop Resistance: 2 m onto concrete

User Interface

  • Display: 1.1” OLED Color Screen
  • Buttons: Power & Function
  • Web UI: Yes – configuration, status, data transfer, updates
  • Indicators: GNSS, battery, correction, 4G/static recording

Features :

HD OLED Color Display
Bright, high-contrast screen for clear field operation
60° IMU Tilt Compensation
Measure accurately without perfectly leveling the pole
Full-Band UHF Radio
15 km range with multi-protocol RTK support
Global 4G LTE Connectivity
Direct NTRIP access to correction networks worldwide
20+ Hour Battery Life
All-day operation with hot-swappable battery design
IP68 Rugged Construction
Waterproof and dustproof for extreme conditions
Dual-Frequency GNSS
GPS, GLONASS, Galileo, BeiDou constellation tracking
Centimeter RTK Accuracy
Consistent sub-2cm positioning in challenging environments
Download Center
Reviews :
4.9/5
★★★★★
Based on verified reviews
★★★★★
Marcus Richardson
Senior Land Surveyor · Verified Purchase
Outstanding RTK performance with excellent build quality
The X1 Pro delivers exceptional accuracy in challenging environments where other receivers struggle. The tilt compensation feature has significantly improved our workflow efficiency, and the OLED display remains clearly visible even in direct sunlight. After six months of intensive field use, this unit continues to perform flawlessly.
★★★★★
Dr. Sarah Chen
Geodetic Engineer · Verified Purchase
Multi-constellation tracking exceeds expectations
The multi-GNSS capability provides remarkably stable positioning even under heavy canopy cover. The 4G connectivity integration works seamlessly with our existing NTRIP infrastructure, eliminating the need for separate radio equipment. The compact form factor makes it ideal for both handheld and rover applications.
★★★★★
James Peterson
Construction Survey Manager · Verified Purchase
Reliable precision for demanding construction layouts
This receiver consistently achieves centimeter-level accuracy even in areas with significant multipath interference near buildings and machinery. The IMU system provides stable measurements during rapid pole movements, which is crucial for our fast-paced construction surveys. Battery life easily handles full day operations without issues.
★★★★★
Roberto Martinez
GIS Specialist · Verified Purchase
Versatile connectivity options streamline field operations
The multi-protocol UHF radio compatibility allows seamless integration with various base station configurations across different project sites. Data logging capabilities are comprehensive, and the HD display interface makes field configuration adjustments intuitive and efficient. The rugged construction has withstood harsh environmental conditions without any performance degradation.
★★★★☆
Michael Thompson
Survey Technician · Verified Purchase
Professional grade performance with minor learning curve
The X1 Pro delivers professional-grade accuracy and the tilt compensation feature works exceptionally well for topographic surveys. Initial setup requires familiarization with the extensive feature set, but once configured, operation is straightforward. The only minor drawback is that advanced IMU calibration procedures could be better documented in the user manual.

What's in the Box

Everything you need to get started.

  • X1 Pro GNSS Receiver
  • Type-C USB Cable
  • TNC UHF Antenna
  • SIM Tray Pin Tool
  • Carrying Case
  • Quick Start Guide
  • Optional: RS232 Cable, Voice Speaker Module

Note: Optional accessories sold separately.

Frequently Asked Questions

General
What accuracy levels can I expect with the X1 Pro GNSS receiver?
The SingularXYZ X1 Pro delivers centimeter-level positioning accuracy with its full RTK capabilities. In RTK mode, you can achieve horizontal accuracy of ±8mm + 1ppm and vertical accuracy of ±15mm + 1ppm, making it suitable for precision surveying, construction layout, and GIS applications.
How does the tilt IMU feature work and what are its limitations?
The integrated tilt IMU allows for measurements with the pole tilted up to 30 degrees from vertical while maintaining accuracy. The system automatically compensates for pole tilt using advanced sensor fusion algorithms, eliminating the need for perfect pole leveling and increasing productivity in challenging terrain or tight spaces.
What communication protocols does the multi-protocol UHF support?
The X1 Pro's multi-protocol UHF radio supports industry-standard protocols including Pacific Crest, TrimTalk, TransTalk, and SATEL protocols. This ensures compatibility with existing base stations and network RTK services, providing flexibility for various surveying workflows and integration with legacy equipment.
How long does the battery last during field operations?
The X1 Pro provides up to 12 hours of continuous operation with its high-capacity internal battery. Battery life may vary depending on usage patterns, with 4G connectivity and UHF radio transmission affecting consumption. The unit features hot-swappable external battery options for extended field sessions.
What environmental conditions can the X1 Pro withstand?
The X1 Pro is built for demanding field conditions with IP67 rating for dust and water resistance. It operates reliably in temperatures from -40°C to +65°C and can withstand humidity up to 95% non-condensing. The rugged design includes shock and vibration resistance to military specifications.
