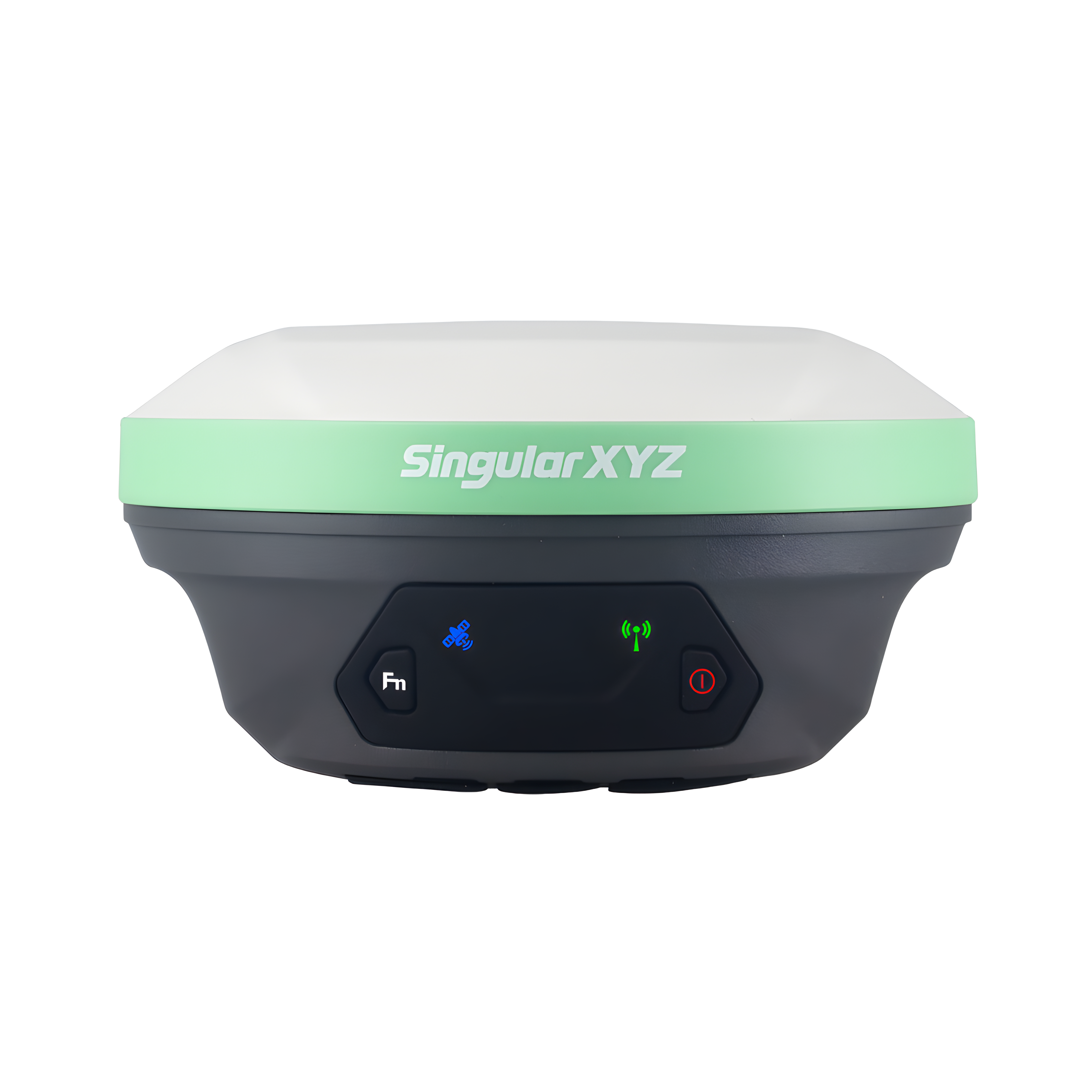

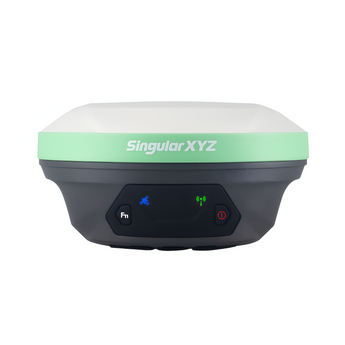

SingularXYZ X1 Lite GNSS Receiver

$2,489.75

Contact us for the best deal on this product.


The SingularXYZ X1 Lite GNSS receiver is a compact and very cost-effective RTK device aimed at professional surveyors. It comes with full-constellation tracking, 60° tilt IMU, and a rugged IP68-rated housing capable of delivering precise results no matter the situation in the field. Most importantly, it can deliver all of the required results without breaking your budget.

Watch the Singular X1 in Action

Secure Payments
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
Shop Pay
Visa
  • Quick worldwide shipping with trusted carriers
  • Multiple safe payment options for peace of mind
  • Professional advice to choose the right equipment
  • 24/7 premium customer assistance

Product Information

Professional RTK GNSS Without the Premium Price

The SingularXYZ X1 Lite delivers enterprise-grade RTK positioning capabilities in a budget-conscious package designed specifically for professional surveyors who demand reliability without compromise.


Advanced Positioning Technology

Built with full-constellation tracking and 60-degree tilt compensation, the X1 Lite maintains centimeter accuracy even when your pole isn't perfectly vertical. The integrated IMU sensor automatically corrects for natural operator movement, ensuring consistent results across varied terrain and working conditions.

Field-Ready Durability

Engineered with IP68 protection and a lightweight magnesium-aluminum housing, this receiver withstands dust, water submersion, and impact while remaining comfortable for all-day fieldwork. The 20+ hour battery eliminates mid-day charging interruptions, keeping your crew productive from dawn to dusk.


Key Advantages

  • Multiple RTK connectivity options including UHF radio and optional 4G cellular
  • NFC pairing and Bluetooth 4.0 for instant device connection
  • Web UI management for remote configuration and monitoring
  • Static data collection capability for post-processing workflows
  • Compact form factor reduces operator fatigue during extended surveys

Accuracy

  • Standalone: 1.5 m (H) / 2.5 m (V)
  • DGPS: 0.4 m (H) / 0.8 m (V)
  • Static: 2.5 mm + 0.5 ppm (H) / 5 mm + 0.5 ppm (V)
  • RTK: 8 mm + 1 ppm (H) / 15 mm + 1 ppm (V)
  • PPP: 5 cm (H) / 10 cm (V)
  • SBAS: <1.0 m 3D RMS
  • Time Accuracy: 20 ns
  • Tilt Surveying: <±2.5 cm (within 60° tilt)

GNSS Tracking

  • Channels: 1408
  • GNSS: GPS, GLONASS, BDS, Galileo, QZSS, NavIC, SBAS
  • L-Band: Supported
  • Cold Start: <30 s
  • Re-acquisition: <1 s
  • RTK Init Time: <5 s (typical)
  • Reliability: >99.9%

Communication

UHF Modem:

  • Range: Up to 15 km
  • Frequency: 410–470 MHz
  • TX/RX: LoRa
  • RX Only: TRIMTALK, SATEL, TRIMMARK3, etc
  • Power: 0.5–2W selectable

Bluetooth: 4.0 Dual Mode

NFC: Supported

Interfaces:

  • Type-C (charging & data)
  • 7-pin Lemo (RS232 + power)
  • TNC for UHF antenna

Data Handling

  • Formats: NMEA-0183, RINEX 3.02/3.04, *.xyz
  • Update Rate: 1–50 Hz
  • Correction: RTCM v3.0–v3.3, CMR
  • Protocols: NTRIP Client / Server / Caster, TCP

Power

  • Battery: 6700 mAh
  • Runtime: Over 20 hours
  • Charging: Fast charge in ~3 hours
  • Voltage: 9–28 V DC
  • Power Use: ~2.0 W

Physical Specs

  • Size: Φ133.5 mm × 67 mm
  • Weight: 870 g
  • Storage: 8 GB (expandable to 32 GB)
  • Material: Magnesium-aluminum alloy
  • Optional: Speaker for voice status alerts

Environment

  • Operating Temp: -40°C to +65°C
  • Storage Temp: -55°C to +85°C
  • Humidity: 100% non-condensing
  • Protection: IP68
  • Drop Resistance: 2 m onto concrete

User Interface

  • LEDs: 4 (GNSS, battery, data, static)
  • Buttons: Power + Function
  • Web UI: Yes (via Wi-Fi or cable)

Features :

1408-Channel GNSS Tracking
Full constellation support for GPS, BDS, Galileo, GLONASS, QZSS, IRNSS, SBAS
60° Tilt Compensation IMU
Maintain sub-2.5cm accuracy even when pole isn't perfectly vertical
Internal UHF Radio Modem
Up to 15km range for RTK corrections without external radios
Ultra-Lightweight Design
Just 870g reduces operator fatigue during long survey sessions
20+ Hour Battery Life
All-day operation with rapid 3-hour charging capability
NFC & Bluetooth 4.0
Seamless pairing and data collection with mobile devices
IP68 Rugged Housing
Dustproof and waterproof protection for harsh field conditions
Budget-Friendly RTK Solution
Professional-grade accuracy without the premium price tag
Download Center
Reviews :
4.8/5
★★★★★
Based on verified reviews
★★★★★
Marcus Rodriguez
Senior Land Surveyor · Verified Purchase
Exceptional Value for Professional-Grade Accuracy
The X1 Lite delivers centimeter-level precision consistently across all constellation systems without the premium price tag. The 60° tilt compensation has significantly improved our workflow efficiency, especially in challenging terrain where traditional pole leveling was problematic.
★★★★★
Jennifer Kim
GIS Specialist · Verified Purchase
Robust Construction Withstands Field Conditions
After six months of intensive field use including exposure to heavy rain and dusty construction sites, the IP68 rating has proven reliable. Signal acquisition remains strong even in challenging multipath environments, making it ideal for urban surveying applications.
★★★★★
David Thompson
Survey Department Manager · Verified Purchase
Outstanding RTK Performance at Competitive Price Point
We've deployed multiple X1 Lite units across our team and the RTK initialization times consistently outperform our previous equipment. The full-constellation tracking provides excellent redundancy and reliability for our cadastral boundary surveys.
★★★★☆
Sarah Mitchell
Construction Surveyor · Verified Purchase
Compact Design Enhances Portability
The lightweight form factor makes it easy to transport between multiple job sites daily. Battery life meets specifications and the intuitive interface reduces training time for new operators, though I'd appreciate slightly faster cold start times.
★★★★★
Robert Chen
Principal Surveyor · Verified Purchase
Reliable Multi-Constellation Performance
Excellent satellite tracking across GPS, GLONASS, Galileo, and BeiDou systems ensures consistent positioning even under heavy canopy. The IMU integration works seamlessly and has become indispensable for our topographic mapping projects.

What's in the Box

Everything you need to get started.

  • X1 Lite GNSS Receiver
  • Type-C USB Cable
  • UHF Antenna
  • Quick Start Guide
  • Carrying Case
  • Optional: RS232 cable, speaker module

Note: Optional accessories sold separately.

Frequently Asked Questions

General
What GNSS constellations does the X1 Lite support?
The X1 Lite features full-constellation tracking capability, supporting GPS, GLONASS, Galileo, and BeiDou satellite systems. This comprehensive constellation support ensures optimal satellite availability and positioning accuracy across all global regions.
How does the 60° tilt IMU feature work?
The integrated tilt IMU allows the X1 Lite to maintain RTK accuracy even when the pole is tilted up to 60 degrees from vertical. This eliminates the need for precise pole leveling, significantly improving field productivity while maintaining survey-grade positioning accuracy.
What is the IP68 rating and what conditions can it withstand?
The IP68 rating certifies the X1 Lite as completely dust-tight and capable of continuous submersion in water beyond 1 meter depth. The rugged housing is engineered to withstand extreme field conditions including rain, snow, dust, and accidental drops, ensuring reliable operation in challenging environments.
What RTK accuracy can I expect from the X1 Lite?
The X1 Lite delivers professional-grade RTK positioning with typical accuracies of ±8mm + 1ppm horizontal and ±15mm + 1ppm vertical. These specifications meet or exceed industry standards for professional surveying applications while maintaining fast initialization times.
Is the X1 Lite compatible with existing surveying software?
Yes, the X1 Lite supports industry-standard communication protocols and data formats, ensuring compatibility with major surveying software packages and field controllers. This allows seamless integration into existing surveying workflows without requiring proprietary software or additional licensing fees.
