Meridian M20L RTK GNSS Receiver

$4,094.26

Contact us for the best deal on this product.

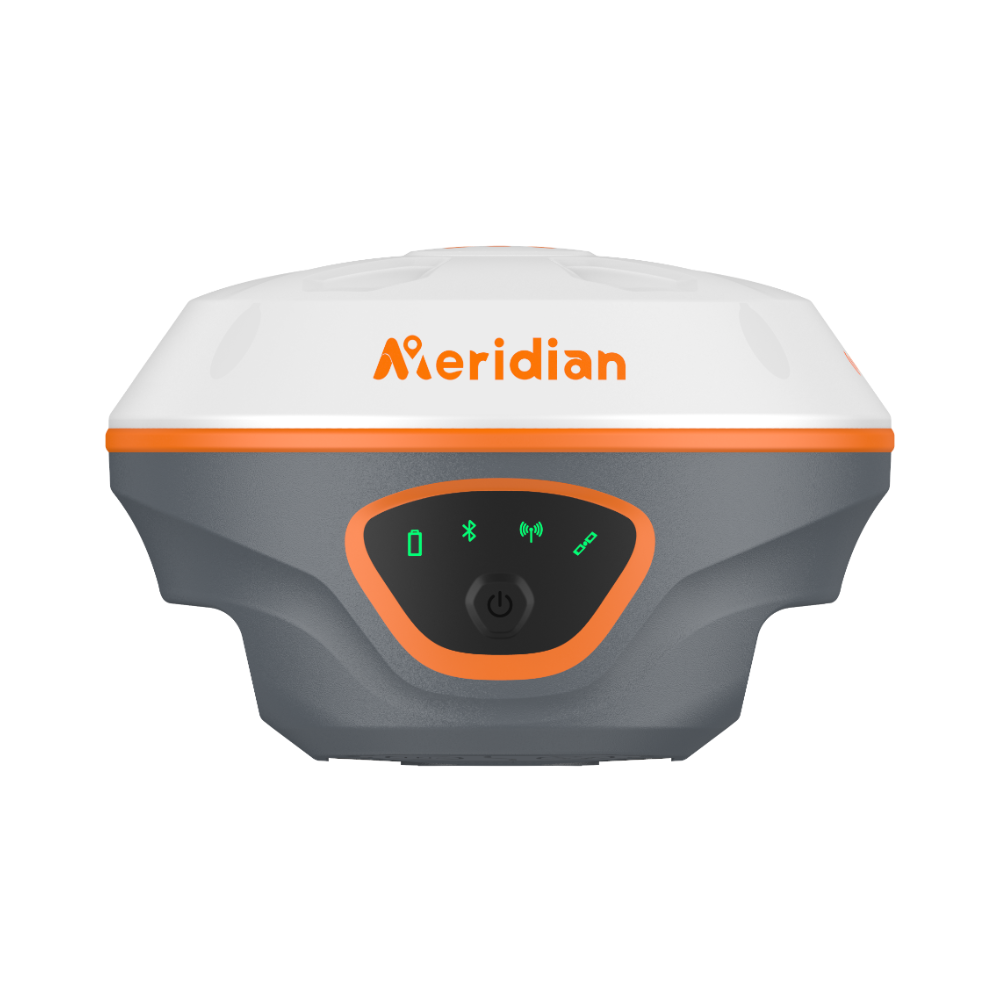

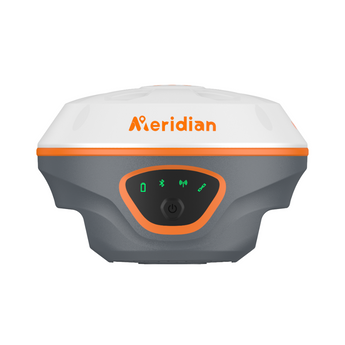

The Meridian M20L RTK GNSS receiver is a high-precision RTK system engineered for professional surveying and geospatial applications. It features 1408-channel GNSS tracking, 120° IMU tilt compensation, and also comes with green laser technology that helps to enhance visibility. The receiver ensures fast and accurate positioning even in complex environments, producing excellent and accurate results.

Watch the Meridian M20L Unboxing

Secure Payments
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
Shop Pay
Visa
  • Quick worldwide shipping with trusted carriers
  • Multiple safe payment options for peace of mind
  • Professional advice to choose the right equipment
  • 24/7 premium customer assistance

Product Information

Professional RTK GNSS Positioning with Visual Laser Guidance

The Meridian M20L combines high-precision RTK positioning with integrated green laser technology, delivering professional-grade surveying capabilities for geospatial professionals who demand accuracy and efficiency in challenging field conditions.


Precision Without Compromise

The 1408-channel GNSS tracking engine delivers centimeter-level accuracy across multiple satellite constellations. Combined with 120° IMU tilt compensation, you can capture precise measurements without the traditional requirement to level your pole, dramatically reducing setup time and increasing productivity in the field.

Visual Guidance Technology

The integrated green laser provides visual alignment assistance up to 100 meters, making it easier to establish accurate positioning in complex environments. This visual guidance system enhances measurement confidence and reduces the likelihood of positioning errors, particularly valuable for layout work and point stakeout applications.


Built for Professional Demands

  • All-day operation: 26-hour battery life with 7000mAh lithium-ion power
  • Rugged reliability: IP67 waterproof and dustproof protection for harsh conditions
  • Extended range: GSM connectivity up to 50km with 8km base station radius
  • Portable design: Lightweight 699g construction for comfortable all-day use

Channels: 1408-channel GNSS receiver

GNSS Signal Support:

  • GPS: L1 C/A, L1C, L2P(Y), L2C, L5
  • GLONASS: L1, L2, L3
  • BEIDOU: B1I, B2I, B3I, B1C, B2a, B2b
  • GALILEO: E1, E5a, E5b, E6
  • QZSS: L1 C/A, L1C, L2C, L5, L6
  • SBAS: L1, L5
  • IRNSS: L5
  • L-Band: Atlas

Positioning Accuracy:

Single Point Positioning (RMS):

  • Horizontal: 1.5m
  • Vertical: 3.0m

DGPS (RMS):

  • Horizontal: 0.4m
  • Vertical: 0.8m

RTK (RMS):

  • Horizontal: ±(8 mm + 1 ppm)
  • Vertical: ±(15 mm + 1 ppm)

  • IMU Technology: 120° calibration-free tilt compensation

Laser Technology:

  • Green Laser Range: 100 meters
  • Accuracy: 8 mm + 3 mm/m

Connectivity:

  • Bluetooth: V2.1+EDR/V4.0 Dual Mode
  • GSM Mode: 45-50 km
  • Radius Range: Up to 8 km

Battery:

  • Capacity: 7.4V, 7000mAh lithium-ion
  • Battery Life: Up to 26 hours

Durability:

  • IP67-rated dustproof and waterproof
  • Operating Temperature: -40°C to +85°C

Weight: 699g

Features :

1408-Channel GNSS Tracking
Multi-constellation receiver for maximum satellite coverage
120° IMU Tilt Compensation
Fast positioning without perfect leveling requirements
Green Laser Technology
Enhanced visibility for precise point marking up to 100m
26-Hour Battery Life
All-day operation without power interruption
Palm-Sized Design
Lightweight and portable for single-operator use
GSM Long-Range Mode
Extended coverage up to 45-50km from base station
RTK Precision
Centimeter-level accuracy for professional surveying
Complex Environment Ready
Reliable performance in challenging field conditions
Download Center
Reviews :
4.9/5
★★★★★
Based on verified reviews
★★★★★
David R. Thompson
Senior Project Surveyor · Verified Purchase
Outstanding precision and reliability in challenging terrain
The 1408-channel tracking capability delivers consistent sub-centimeter accuracy across multiple constellations. The 120° tilt compensation is a game-changer for complex topographic surveys, eliminating the need for precise leveling in most conditions.
★★★★★
Maria Santos-Chen
Licensed Land Surveyor · Verified Purchase
Green laser technology enhances field productivity
The integrated green laser provides exceptional visibility in bright sunlight conditions where traditional red lasers fail. RTK initialization is remarkably fast, typically under 10 seconds even in dense canopy environments.
★★★★★
James Mitchell
GIS Coordinator · Verified Purchase
Robust construction meets demanding field requirements
Exceptional build quality withstands harsh environmental conditions without compromising accuracy. The IMU integration significantly reduces measurement time while maintaining precise positioning standards required for cadastral work.
★★★★★
Dr. Katherine Walsh
Research Geodesist · Verified Purchase
Professional-grade performance with intuitive operation
Multi-constellation support ensures reliable positioning in urban canyon environments where satellite visibility is limited. The advanced signal processing delivers consistent results that meet stringent accuracy requirements for engineering applications.
★★★★☆
Robert Anderson
Construction Site Supervisor · Verified Purchase
Excellent accuracy with comprehensive feature set
The M20L delivers millimeter-level precision for machine control applications. Battery life could be extended for longer field sessions, but the overall performance and reliability make it an excellent investment for serious surveying operations.

What's in the Box

Everything you need to get started.

  • M20L GNSS Receiver
  • 7.4V 7000mAh lithium-ion battery
  • USB Type-C charging cable
  • Green laser module
  • Protective carrying case
  • Quick start guide

Note: Optional accessories sold separately.

Frequently Asked Questions

General
What GNSS constellations does the M20L RTK receiver support?
The Meridian M20L supports all major GNSS constellations including GPS, GLONASS, Galileo, BeiDou, QZSS, and IRNSS. With its 1408-channel tracking capability, it can simultaneously receive signals from multiple satellite systems for enhanced positioning accuracy and reliability in challenging environments.
How does the 120° IMU tilt compensation work?
The integrated IMU (Inertial Measurement Unit) allows the M20L to maintain accurate positioning even when the receiver is tilted up to 120° from vertical. This eliminates the need for precise pole leveling and enables efficient point collection in difficult terrain or obstructed areas while maintaining survey-grade accuracy.
What is the purpose of the green laser technology?
The green laser technology provides enhanced point visibility and precise targeting assistance during field operations. The green laser beam is more visible to the human eye compared to red lasers, especially in bright sunlight conditions, allowing surveyors to accurately position the receiver over survey points and improve measurement efficiency.
What types of RTK corrections can the M20L receive?
The M20L supports various RTK correction formats including RTCM 2.x, RTCM 3.x, and CMR/CMR+. It can receive corrections through multiple communication methods such as radio, cellular networks, and NTRIP over internet connections, ensuring flexible operation in diverse field conditions and compatibility with existing base station infrastructure.
What accuracy specifications can I expect from the M20L?
The M20L delivers centimeter-level accuracy in RTK mode with typical horizontal accuracy of ±8mm + 1ppm and vertical accuracy of ±15mm + 1ppm. In static post-processing mode, it can achieve sub-centimeter accuracy. The high-precision positioning is maintained even in complex environments with multipath interference or partial sky visibility.
