FJDynamics

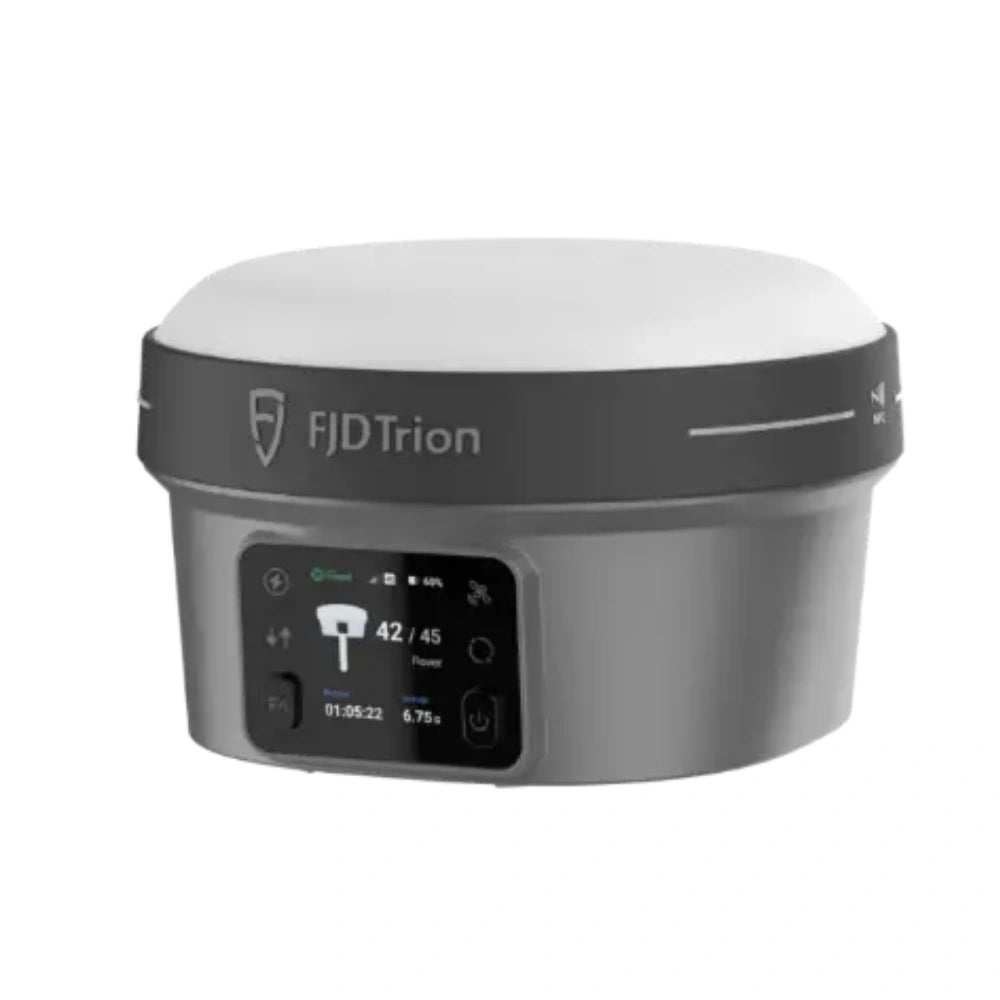

FJD Trion V10L GNSS RTK Receiver – Laser Surveying with Visual Stakeout and 2nd Gen IMU

$4,868.85

Contact us for the best deal on this product.


The FJD V10L GNSS Rover is a high-performance RTK solution with laser-guided stakeout, dual starlight cameras, and IMU-based tilt compensation. Designed for surveyors seeking accuracy, safety, and speed in the field.

Secure Payments
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
Shop Pay
Visa
  • Quick worldwide shipping with trusted carriers
  • Multiple safe payment options for peace of mind
  • Professional advice to choose the right equipment
  • 24/7 premium customer assistance

Product Information

Visual Laser Stakeout with Advanced IMU Compensation

The FJD Trion V10L combines precision GNSS positioning with laser-guided visual stakeout technology, enabling surveyors to measure dangerous or inaccessible points safely from a distance while maintaining centimeter accuracy.


Laser-Guided Visual Measurement

The integrated precision green laser with dual 2MP starlight cameras allows you to accurately measure points without physical contact. This revolutionary approach eliminates safety risks when surveying bridge edges, cliff faces, or hazardous terrain while maintaining the precision standards demanded by professional surveying applications.

Second-Generation IMU Technology

The advanced IMU system provides reliable tilt compensation up to 60 degrees, eliminating the traditional requirement to level the survey pole. This capability dramatically increases productivity in challenging terrain and tight spaces where conventional leveling is difficult or impossible to achieve.


Key Performance Advantages

  • 1408-channel GNSS engine with full constellation support for reliable RTK positioning
  • Multiple connectivity options including 4G, UHF, Wi-Fi, and Bluetooth for seamless network integration
  • Night vision capability with dual starlight cameras for extended operational hours
  • Rugged field construction designed for extreme weather and demanding survey environments

Whether working in dense urban environments, under challenging weather conditions, or in hazardous locations, the V10L delivers the precision and safety features that modern surveying professionals demand.

Specifications:

  • GNSS Channels: 1408
  • Constellations: GPS, GLONASS, BeiDou, Galileo, QZSS, IRNSS
  • RTK Accuracy: Horizontal: 8 mm + 1 ppm, Vertical: 15 mm + 1 ppm
  • Tilt Compensation: Up to 60°, no calibration needed
  • IMU Tilt Accuracy: 8 mm + 0.6 mm/°
  • Laser Class: 2M, 520nm, visible up to 5 m (±2 cm)
  • Visual Targeting Range: Up to 80 m
  • Cameras: Dual 2MP global shutter, starlight night vision
  • Battery: 7000 mAh Li-ion, up to 15 hours rover time
  • Data Storage: 32 GB internal
  • Display: 1.41" OLED, 274 pp
  • Communication: 4G LTE, UHF 410–470 MHz, Wi-Fi 2.4/5 GHz, NFC, Bluetooth 5.0
  • Protection: IP68, MIL-STD-810G, 2 m drop-resistant
  • Weight: 980 g
  • Dimensions: Diameter 130 mm × Height 83 mm

Features :

Laser-Guided Stakeout
Green laser targeting with 5m range and ±2cm accuracy for precise point location
Dual Starlight Cameras
2MP night-vision cameras with AR-assisted visual stakeout and real-time guidance
IMU Tilt Compensation
Real-time tilt compensation up to 60° without calibration requirements
Multi-Constellation GNSS
1408-channel engine tracking GPS, GLONASS, BeiDou, Galileo, QZSS, and IRNSS
EasyFix Auto-Alignment
Automatic laser alignment with zoom and target lock for effortless operation
All-Weather Performance
IP67 waterproof rating with extended battery life for harsh field conditions
RTK Connectivity
4G LTE, WiFi, and Bluetooth with NTRIP support for seamless data transmission
Survey Software Integration
Compatible with leading survey software and mobile apps for workflow efficiency
Download Center
Reviews :
4.8/5
★★★★★
Based on verified reviews
★★★★★
Marcus Chen
Senior Land Surveyor · Verified Purchase
Revolutionary laser-guided stakeout capability
The V10L's laser guidance system has transformed our stakeout operations, reducing point acquisition time by 60% compared to traditional methods. The 2nd generation IMU provides exceptional tilt compensation accuracy, allowing confident measurements at angles up to 30 degrees. Build quality and signal tracking performance exceed expectations for this price point.
★★★★★
Sarah Thompson
Principal Engineer · Verified Purchase
Impressive dual camera system and night capability
The starlight cameras are a game-changer for low-light surveying conditions, delivering clear visual references even in challenging environments. RTK initialization is consistently fast with excellent constellation tracking across GPS, GLONASS, BeiDou, and Galilei systems. The visual stakeout interface is intuitive and significantly improves field efficiency.
★★★★☆
David Rodriguez
Construction Survey Manager · Verified Purchase
Excellent accuracy with minor software considerations
Achieving consistent centimeter-level accuracy in challenging multipath environments with the V10L's advanced signal processing. The laser stakeout feature dramatically improves productivity on construction sites. Software interface could benefit from additional customization options, but overall performance and reliability are outstanding.
★★★★★
Jennifer Walsh
Geodetic Surveyor · Verified Purchase
Superior IMU performance and rugged construction
The 2nd generation IMU technology delivers exceptional tilt compensation accuracy, essential for our precision geodetic work. Robust IP67 rating provides confidence in adverse weather conditions, while the hot-swappable battery system ensures uninterrupted field operations. FJDynamics has delivered a truly professional-grade solution.
★★★★★
Robert Kim
Survey Technology Coordinator · Verified Purchase
Exceptional value with enterprise-grade features
The V10L delivers premium RTK performance typically found in higher-priced systems, with the added benefit of innovative laser guidance technology. Multi-constellation support and rapid convergence times consistently meet our demanding accuracy requirements. The visual stakeout system has become indispensable for our field crews.

What's in the Box

Everything you need to get started.

  • FJD Trion V10L GNSS Rover Receiver
  • GNSS Survey Pole
  • Controller (model may vary)
  • Controller Clamp Mount
  • Li-ion Batteries
  • Dual Battery Charger and Power Adapter
  • UHF Antenna
  • USB-C Cable
  • Rugged Transport Case
  • Quick Start Guide

Note: Optional accessories sold separately.

Frequently Asked Questions

General
What is the accuracy specification of the V10L with IMU tilt compensation enabled?
The FJD Trion V10L delivers horizontal accuracy of ±8mm + 1ppm and vertical accuracy of ±15mm + 1ppm in RTK mode. With the 2nd generation IMU tilt compensation activated, the system maintains centimeter-level accuracy even when the pole is tilted up to 30 degrees from vertical, significantly improving productivity in challenging terrain.
How does the laser-guided visual stakeout system work in field conditions?
The V10L features an integrated laser pointer system combined with dual starlight cameras that provide real-time visual guidance to stakeout points. The laser projects directly onto the target location while the high-sensitivity cameras capture clear images in low-light conditions. This combination allows surveyors to locate points quickly and accurately, even in challenging lighting conditions or dense vegetation areas.
What GNSS constellations does the V10L track and what is the initialization time?
The Trion V10L tracks GPS L1/L2/L5, GLONASS L1/L2, BeiDou B1I/B2I/B3I, and Galileo E1/E5a/E5b signals simultaneously. This multi-constellation tracking capability, combined with 1408 channels, ensures robust satellite coverage and reliable positioning. Typical RTK initialization time is less than 10 seconds under normal satellite visibility conditions.
What is the operating temperature range and battery life of the V10L?
The V10L operates reliably in temperatures ranging from -40°C to +70°C (-40°F to +158°F), making it suitable for extreme environmental conditions. The internal battery provides up to 12 hours of continuous operation in normal survey mode, with power management features that extend battery life during standby periods. The unit supports hot-swappable external battery packs for extended field campaigns.
What data communication options are available with the V10L system?
The V10L offers multiple connectivity options including integrated 4G LTE cellular modem, WiFi, Bluetooth 5.0, and traditional UHF radio communications. The system supports NTRIP correction services over cellular networks and can receive RTK corrections via radio link from a base station up to 20km away. USB and RS232 ports provide additional data logging and external device connectivity options.
