Alpha

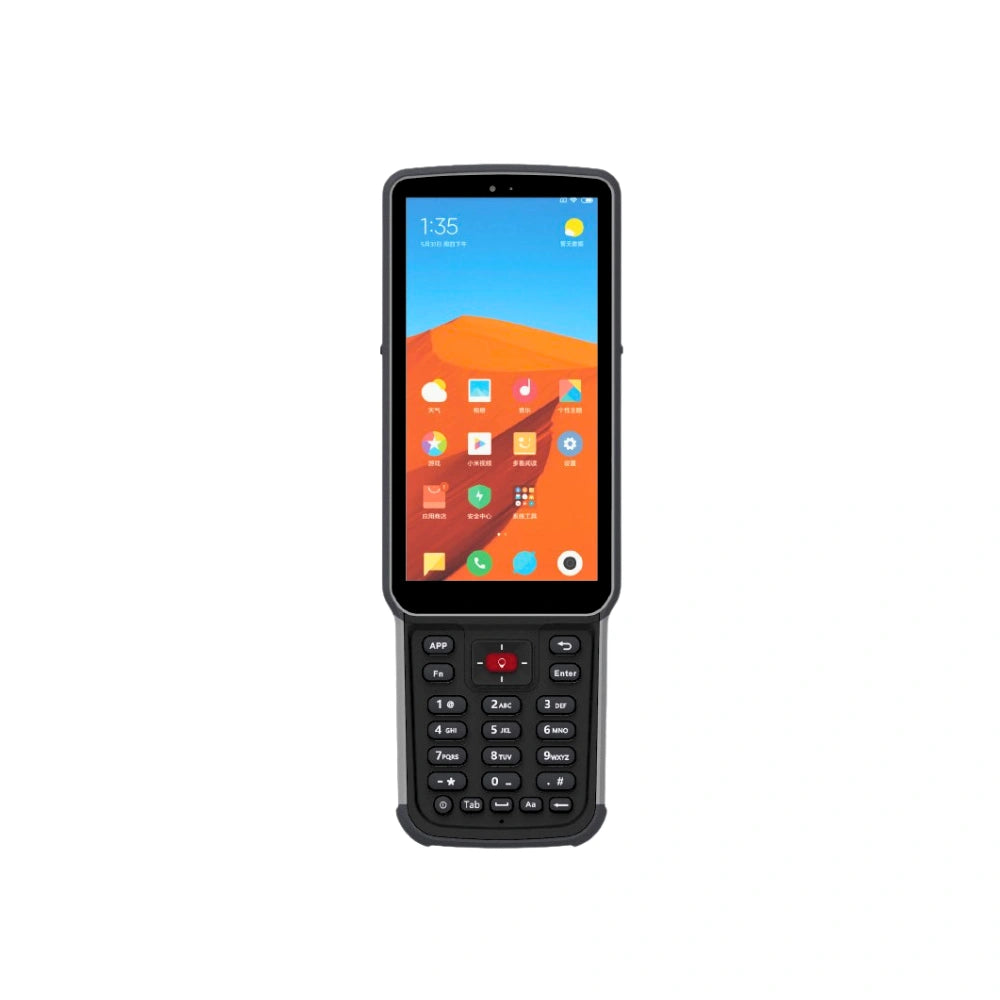

Alpha B55 GNSS Controller

$973.77

Contact us for the best deal on this product.


The Alpha B55 GNSS controller is a rugged, high-performance Android PDA for professional surveyors. It is powered by an 8-core CPU and also includes a dual SIM, Bluetooth 5.0, and IP67 protection, ensuring fast and reliable data collection in any field environment.



Secure Payments
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
Shop Pay
Visa
  • Quick worldwide shipping with trusted carriers
  • Multiple safe payment options for peace of mind
  • Professional advice to choose the right equipment
  • 24/7 premium customer assistance

Product Information

Professional GNSS Controller for Demanding Field Operations

The Alpha B55 transforms how surveyors work in the field, delivering enterprise-grade Android performance in a rugged, all-weather design. Built for professionals who demand reliability when precision matters most.


Uncompromising Performance

The 8-core processor and Android 11 platform deliver desktop-class computing power in your hands. Whether processing complex calculations, running multiple survey applications simultaneously, or managing large datasets, the B55 maintains smooth, responsive operation throughout your workday.


Field-Proven Durability

IP67 protection shields your investment from rain, dust, and drops while the high-resolution 5.5-inch display remains clearly visible in direct sunlight. The 7700mAh battery provides all-day power for extended field sessions without compromise.

  • Dual SIM connectivity ensures constant communication in remote locations
  • Bluetooth 5.0 provides seamless GNSS receiver pairing and data transfer
  • Ergonomic design reduces fatigue during extended field operations
  • Optional NFC enables quick data sharing and equipment configuration

Professional Integration

Seamlessly integrates with leading survey software and GNSS systems, providing the flexibility to work with your existing workflow. The B55 adapts to your methods rather than forcing you to change proven processes.

 Specs

Processor & System:

8-core, 2.0 GHz processor

Android 11 operating system

Display:

  5.5" touchscreen, 720×1440 resolution

Memory & Storage:

  RAM/ROM: 4GB + 64GB

  Expandable: Supports MicroSD up to 256GB

Connectivity:

Bluetooth 5.0 (BLE)

  Wi-Fi 2.4G/5G (IEEE 802.11 a/b/g/n/ac)

USB Type-C, OTG support

Dual SIM card slot

4G LTE, GSM, WCDMA, TDD/FDD LTE bands

Camera & Audio:

13MP rear camera with autofocus

Microphone x1

Speaker: 95dB ±3

Battery:

7700mAh rechargeable Li-ion battery

Fast charging supported

Operating time: Up to 12 hours

Rugged Design & Environmental:

IP67 water and dust resistance

Drop-resistant: 1.5m on hard ground

Operating Temp: –20°C to +55°C

Storage Temp: –30°C to +70°C

Humidity: 5%–95%

Size & Weight:

Dimensions: 221 × 77.7 × 16mm

  Weight: 335g

Other Features:

NFC: ISO14443A/B, ISO15693; distance: 0–5cm

OTG supported

Features :

8-Core Android Performance
High-speed octa-core processor with Android 11 for seamless surveying applications
Sunlight-Readable Display
5.5-inch high-resolution screen optimized for outdoor visibility in bright conditions
All-Day Battery Life
7700mAh high-capacity battery supports extended field operations without interruption
IP67 Rugged Protection
Waterproof and dustproof construction withstands harsh environmental conditions
Dual SIM Connectivity
4G LTE support with dual SIM capability for flexible network connectivity options
Advanced Wireless Tech
Bluetooth 5.0 and dual-band Wi-Fi ensure reliable instrument and cloud connections
Professional Survey Ready
Pre-optimized for GNSS workflows with surveying software compatibility
Ergonomic Field Design
Lightweight yet durable construction designed for comfortable extended use
Download Center
Reviews :
4.9/5
★★★★★
Based on verified reviews
★★★★★
Michael Richardson
Senior Land Surveyor · Verified Purchase
Exceptional Processing Power in Field Conditions
The 8-core CPU delivers impressive performance when running multiple surveying applications simultaneously. The IP67 rating has proven reliable during extended field operations in harsh weather conditions. Data processing speed significantly improves project turnaround times.
★★★★★
Sarah Chen
GIS Specialist · Verified Purchase
Dual SIM Connectivity Game Changer
The dual SIM functionality allows seamless switching between carriers for optimal network coverage across different regions. Bluetooth 5.0 connectivity ensures stable connections with GNSS receivers and peripheral equipment. Android interface integrates perfectly with our existing surveying software suite.
★★★★★
David Petrov
Project Manager, Engineering Consultancy · Verified Purchase
Rugged Design Meets Professional Performance
After six months of intensive fieldwork, the Alpha B55 continues to operate flawlessly in extreme conditions. The rugged construction withstands drops and harsh environmental exposure while maintaining precise GNSS data collection accuracy. Essential tool for professional surveying operations.
★★★★★
Jennifer Walsh
Geodetic Surveyor · Verified Purchase
Superior Data Collection Reliability
The B55 consistently delivers precise positioning data with minimal signal dropout even in challenging environments. High-performance processing capabilities handle complex calculations efficiently, reducing field time and increasing productivity. Outstanding investment for professional surveying teams.
★★★★☆
Thomas Andersson
Construction Surveyor · Verified Purchase
Solid Performance with Minor Learning Curve
Powerful hardware specifications translate to excellent field performance and reliable data collection. Android interface required brief adaptation period coming from Windows-based controllers. Overall excellent value proposition for professional surveying applications.

What's in the Box

Everything you need to get started.

  • Alpha B55 GNSS Controller
  • Rechargeable Li-ion Battery (7700mAh)
  • USB Type-C Cable
  • Power Adapter
  • Wrist/Hand Strap
  • Carrying Case
  • Quick User Guide

Note: Optional accessories sold separately.

Frequently Asked Questions

General
What Android version does the B55 controller run?
The Alpha B55 runs on Android 11 optimized for surveying applications, providing compatibility with professional field software while maintaining security and performance standards required for enterprise surveying operations.
How does the IP67 rating protect the device in field conditions?
The IP67 protection rating ensures complete dust ingress protection and waterproof capabilities up to 1 meter depth for 30 minutes. This allows continuous operation in harsh weather conditions, dusty environments, and accidental water exposure common in surveying fieldwork.
What are the advantages of the dual SIM capability?
The dual SIM functionality provides network redundancy for critical surveying operations, allowing automatic failover between carriers to maintain continuous RTK corrections and data connectivity. This ensures uninterrupted field operations even in areas with limited single-carrier coverage.
How does the 8-core processor improve surveying performance?
The 8-core CPU architecture enables simultaneous processing of multiple surveying tasks including real-time GNSS calculations, CAD rendering, data processing, and communication protocols. This multi-threading capability reduces processing delays and improves overall field productivity during complex surveying operations.
What surveying software is compatible with the B55 controller?
The B55 controller supports major professional surveying applications including Carlson SurvCE, MicroSurvey FieldGenius, TopSurv, and most Android-compatible surveying software platforms. The device's Android 11 OS ensures broad compatibility with current and legacy surveying applications.
