FJDynamics

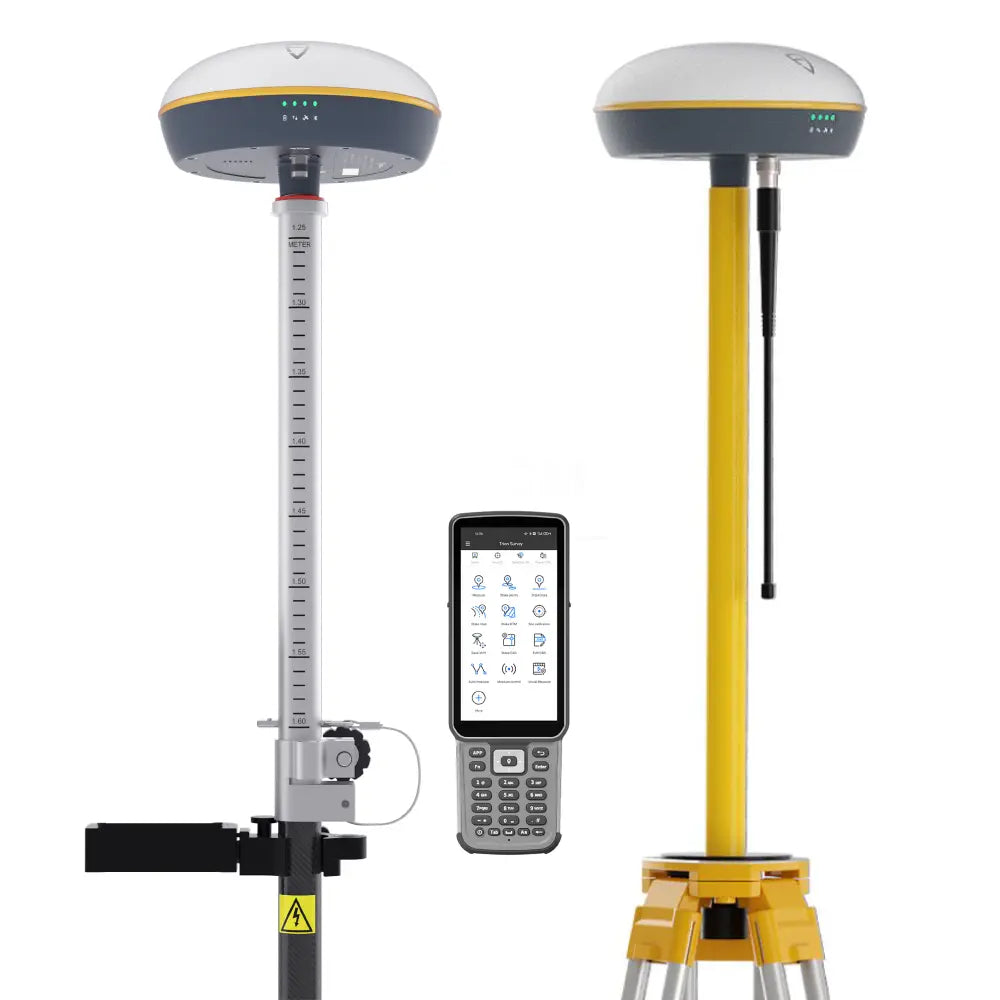

FJD TRION V1t - GNSS Base and Rover Set

$7,404.55

Contact us for the best deal on this product.


The FJD TRION V1t GNSS Base and Rover Set combines high-precision RTK positioning with advanced IMU tilt compensation up to 60°. Supporting 1408 tracking channels across GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS, and IRNSS, it delivers centimeter-level accuracy even in complex environments. With battery life of 10 hours (base) and 15 hours (rover), it ensures reliable, long-duration field performance.

Watch the FJD Trion V1t in Action

Secure Payments
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
Shop Pay
Visa
  • Quick worldwide shipping with trusted carriers
  • Multiple safe payment options for peace of mind
  • Professional advice to choose the right equipment
  • 24/7 premium customer assistance

Product Information

Professional RTK GNSS Survey System with Tilt Compensation

The FJD TRION V1t delivers centimeter-accurate positioning for professional surveyors and construction teams who demand reliable performance in challenging field conditions. This complete base and rover system combines advanced multi-constellation tracking with intelligent tilt compensation technology.


Advanced Multi-Constellation Tracking

With 1408 tracking channels supporting GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS, and IRNSS constellations, the TRION V1t maintains reliable positioning even in obstructed environments. Galileo HAS-PPP support provides enhanced accuracy and faster convergence times for professional applications.


Intelligent Tilt Compensation Technology

The integrated IMU system enables accurate measurements at angles up to 60° without manual leveling, dramatically reducing setup time and improving productivity. This advanced compensation technology maintains centimeter-level accuracy even when the rover pole is not perfectly vertical.


Built for Extended Field Operations

Designed for demanding professional environments, the TRION V1t features IP67-rated protection against dust and water ingress. Extended battery performance ensures uninterrupted operation throughout long survey sessions.

  • Extended Battery Life: 10 hours base operation, 15 hours rover runtime
  • Rugged Construction: IP67 weatherproof rating for harsh field conditions
  • Fast RTK Performance: Sub-second initialization and centimeter accuracy
  • Complete Solution: Ready-to-deploy base and rover configuration
  • Channels: 1408 GNSS channels (GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS, IRNSS)
  • IMU Tilt Compensation: 30° / 2.5 cm accuracy (max 60°)
  • Battery Life: Base 10 h, Rover 15 h (6500 mAh battery)
  • Positioning Accuracy: Horizontal ±2.5 mm + 0.5 ppm, Vertical ±5 mm + 0.5 ppm
  • RTK Initialization: < 5 seconds (baseline < 10 km)
  • Cold Start / Hot Start: < 20 s / < 10 s
  • Protection Rating: IP67, with 32 GB internal memory
  • Connectivity: Bluetooth BR/EDR, Wi-Fi IEEE 802.11b/g/n
  • Operating Temperature: –30 °C to +60 °C
  • Weight: 1070 g; Size: 162 × 86 mm

Features :

1408 GNSS Channels
Tracks all major constellations simultaneously for maximum reliability
60° Tilt Compensation
Measure accurately without leveling the pole for faster workflow
RTK Fix in 5 Seconds
Lightning-fast initialization minimizes downtime between points
Galileo HAS-PPP Ready
Future-proof precision with Europe's high-accuracy service
Extended Battery Life
Base runs 10 hours, rover 15 hours for full-day operations
Centimeter Accuracy
RTK precision even in challenging multipath environments
Complete Base-Rover Set
Everything needed for independent RTK surveying operations
Multi-Constellation Support
GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS, and IRNSS
Download Center
Reviews :
4.8/5
★★★★★
Based on verified reviews
★★★★★
Marcus Thompson
Licensed Land Surveyor · Verified Purchase
Exceptional IMU performance in challenging terrain
The 60-degree tilt compensation is a game-changer for boundary surveys in dense vegetation and uneven terrain. The 1408-channel tracking maintains lock even under heavy canopy where other systems fail. Battery life consistently exceeds manufacturer specifications in real-world conditions.
★★★★★
Sarah Chen
GIS Manager · Verified Purchase
Outstanding multi-constellation reliability
Full constellation support delivers consistent centimeter accuracy across diverse project sites. The base station's 10-hour runtime handles extended mapping campaigns without interruption. Integration with existing workflows was seamless and trouble-free.
★★★★★
James Rodriguez
Construction Surveyor · Verified Purchase
Robust performance in demanding environments
This system maintains RTK fix in conditions that would challenge premium competitors at twice the price. The advanced IMU technology eliminates the need for perfect rod leveling, significantly improving productivity on active construction sites.
★★★★☆
Dr. Patricia Walker
Geodetic Engineer · Verified Purchase
Solid engineering with minor software considerations
Hardware performance is excellent with consistent sub-centimeter accuracy and impressive satellite tracking capabilities. The rover's 15-hour battery life supports extended field campaigns. Firmware updates could be more frequent to address minor interface improvements.
★★★★★
Michael O'Connor
Survey Department Manager · Verified Purchase
Professional-grade reliability at competitive pricing
After six months of intensive field use, this system continues to deliver consistent professional results. The combination of advanced constellation support and tilt compensation technology provides significant operational advantages. Build quality and accuracy rival systems costing significantly more.

What's in the Box

Everything you need to get started.

  • FJD TRION V1t GNSS Rover
  • FJD TRION V1t GNSS Base
  • Field Controller (E600, 5.5” display, 7700 mAh battery)
  • UHF Antenna
  • Power Supply and Cables
  • Carrying Case

Note: Optional accessories sold separately.

Frequently Asked Questions

General
What level of accuracy can I expect with the FJD TRION V1t system?
The FJD TRION V1t delivers centimeter-level accuracy through its RTK positioning technology. With support for 1408 tracking channels across multiple GNSS constellations (GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS, and IRNSS), the system maintains high precision even in challenging environments with limited satellite visibility.
How does the IMU tilt compensation feature work?
The advanced IMU (Inertial Measurement Unit) provides tilt compensation up to 60 degrees, allowing accurate measurements even when the rover pole is not perfectly vertical. This eliminates the need for bubble levels in most situations and significantly speeds up data collection while maintaining precision in complex terrain or tight spaces.
What is the expected battery life for field operations?
The base station provides up to 10 hours of continuous operation, while the rover unit offers extended 15-hour battery life. This ensures full-day field operations without interruption, making it ideal for large-scale surveying projects and extended data collection sessions.
Is this system suitable for complex environments with obstructions?
Yes, the FJD TRION V1t is specifically designed for reliable performance in complex environments. The 1408 tracking channels and multi-constellation support ensure strong satellite reception even in areas with canopy cover, urban canyons, or other obstructions. The advanced signal processing maintains accuracy where traditional single-frequency receivers might struggle.
What applications is the TRION V1t base and rover set best suited for?
The system excels in professional surveying, construction layout, topographic mapping, boundary surveys, and infrastructure projects. The combination of high precision, tilt compensation, and extended battery life makes it particularly valuable for large-scale projects requiring consistent accuracy throughout extended field sessions.
